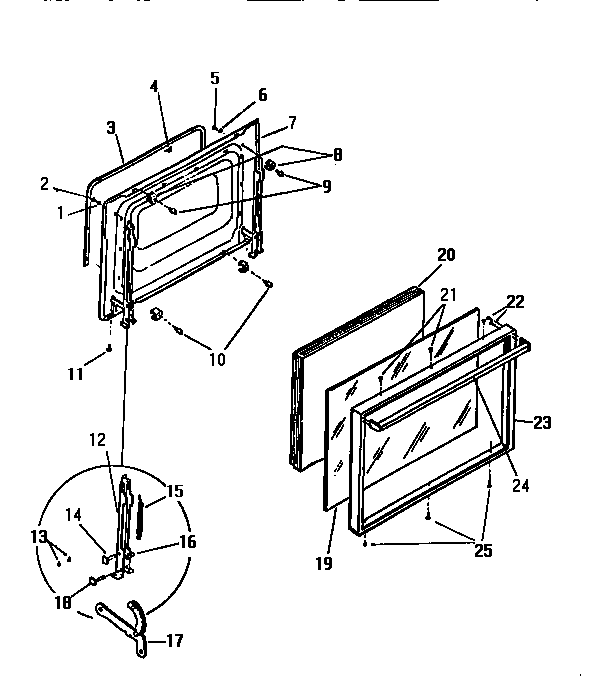

KF440GDD2 04 – DOOR

Written by

KF440GDD2 04 – DOOR

Products

Position	Product
3	GASKET (WITH CLIPS)
4	WCI K1309666
6	WASHER, PADDED
7	LINER, OVEN DOOR
8	SPACER (4)
9	BUMPER TOP (2)
10	BUMPER BTM
12	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
14	RIVET
15	SPRING
16	ROLLER PACKAGE-OVEN DOOR (2)
17	ARM ASSY.
18	AXLE
19	GLASS
20	INSULATION
22	SCREW
23	FRAME
24	HANDLE ASSY (INCLUDES STANCHION)
25	WCI K1164550
