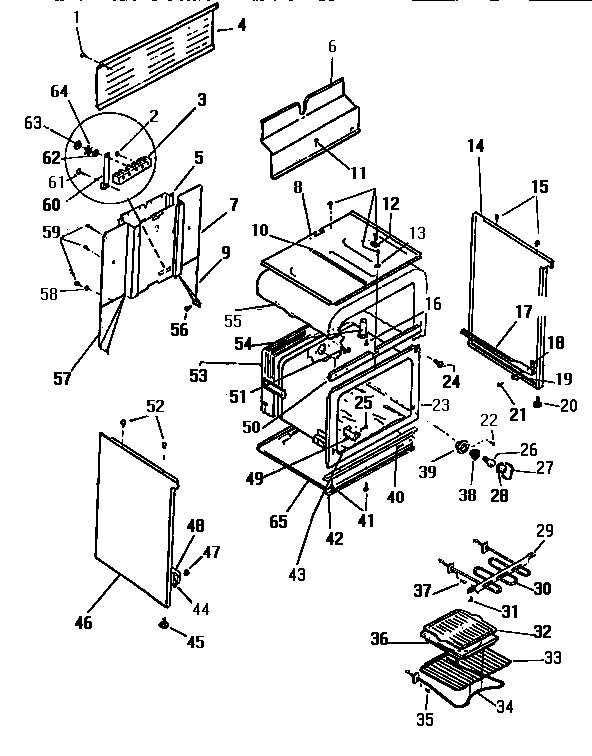

KF440GDF2 05 – BODY, SIDE PANELS

Products

Position	Product
3	TERMINAL BLOCK
4	COVER-WIRE
5	COVER, WIRE
6	WCI 5029503
7	BACK
8	WCI K5025802
9	GUSSET, RH
10	ROD
12	RETAINER
13	WASHER, PADDED
14	WCI K5024605
16	SCREW
17	RAIL, DWR., RH
21	SCREW
23	OVEN LINER ASSEMBLY
24	WCI K5294301
26	WCI Q63749
27	RETAINING WIRE
28	5304524341 Frigidaire Lens
29	HANGER
30	5303051516 Frigidaire Broil Element
32	GRILLE, BROILER
33	RACK (2)
34	5303051519 Frigidaire Oven 2600W Bake Element
36	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
37	08002868 Frigidaire 0 Screw Assembly
38	316116400 Frigidaire Oven Light Socket
39	CUP, OVEN LT
40	SCREW
43	CHANNEL, OV. SUPT.
44	SPACER, RAIL
45	LEG
46	WCI K5024606
47	GUIDE
48	RAIL, DWR, LH
49	BRACKET THERM. BULB
50	CHANNEL-OVEN SUPT
52	BUMPER
53	INSULATION, BACK
54	VENT TUBE
55	INSULATION, WRAP
57	GUSSET REAR, LH
58	WCI Q410505
60	STRAP-GROUND
62	WASHER (6)
63	WCI Q401002
64	WCI Q500411
65	PANEL, BTM
