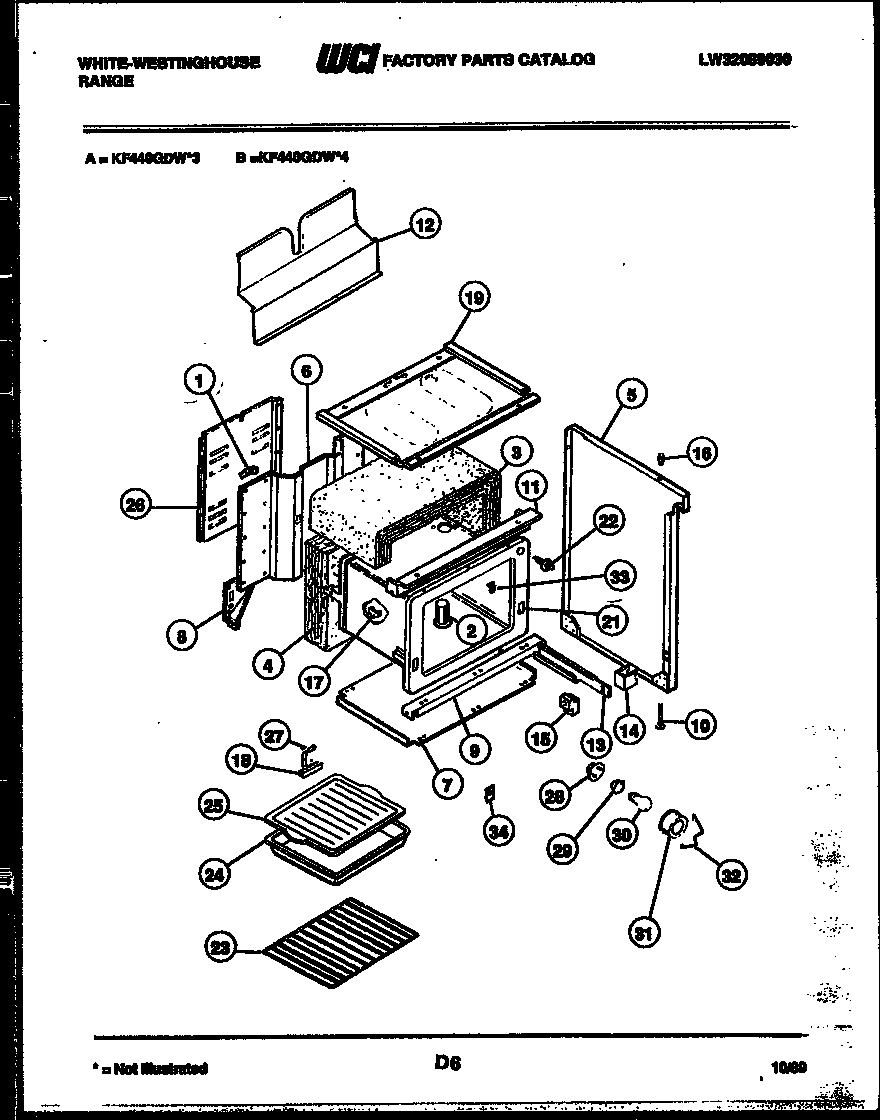

KF440GDV3 06 – BODY PARTS

Products

Position	Product
2	TUBE-OVEN VENT
3	INSULATION – OVEN WRAP
4	INSULATION-OVEN BACK
5	PANEL-END LH AVOC
5	PANEL-END RH AVOC
6	GUSSET-REAR RH
7	WCI 3203574
8	WCI 3017481
8	WCI 3017482
9	CHANNEL – OVEN SUPPORT LOWER
10	LEG, LEVELLER (4)
11	WCI 3200926
12	WCI 3206095
13	WCI K005269902
13	WCI 08015746
14	SPACER-DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER
17	BRACKET-THERMO BULB (2)
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI K005025802
21	WCI K1317841
22	WCI K005294301
23	316067902 Frigidaire Oven Rack
24	WCI 3205232
25	WCI 3205234
26	COVER – WIRE
27	STRAP-GROUND
28	WCI K001325530
29	316116400 Frigidaire Oven Light Socket
30	316538904 Frigidaire Oven Lamp Light
31	5304524341 Frigidaire Lens
32	WCI K001325529
33A	ANTI-TIP KIT, (NON-ILLUSTRATED)
