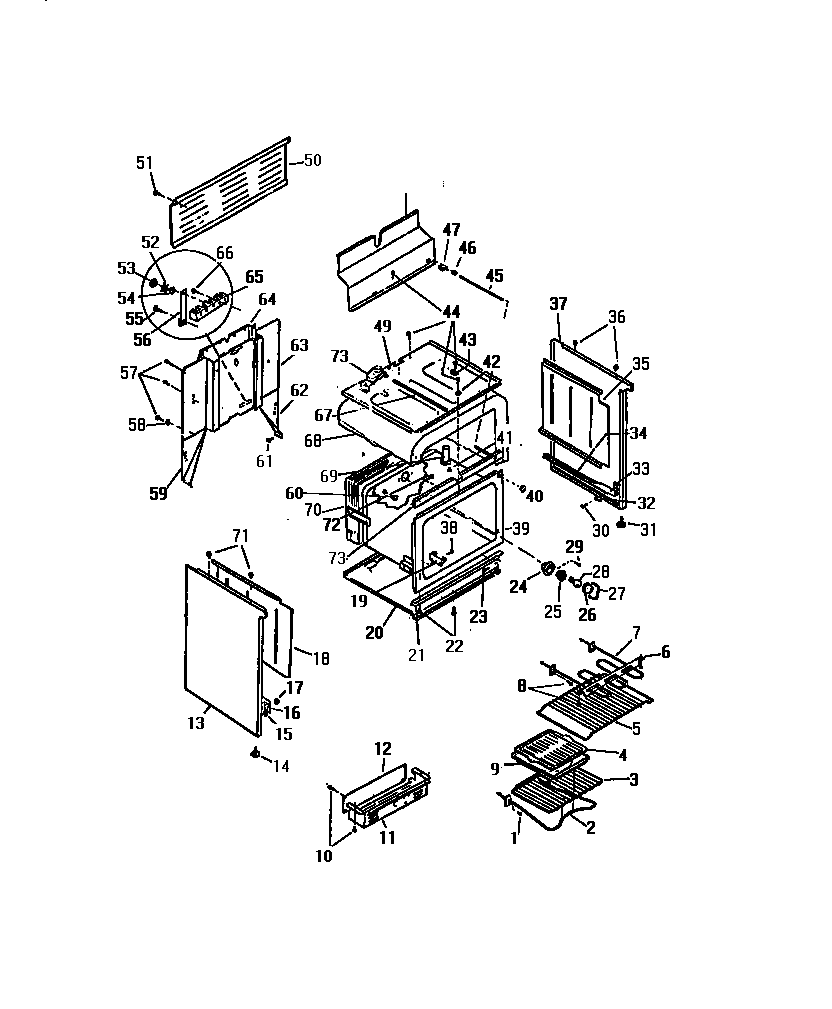

KF450GDD0 06 – BODY, SIDE PANELSadmin2025-04-26T10:04:05+00:00KF450GDD0 06 – BODY, SIDE PANELS
Products
| Position | Product |
|---|
| 2 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 3 | RACK (2) |
| 4 | WCI K1317972 |
| 5 | WCI K5133501 |
| 6 | HANGER |
| 7 | 5303051516 Frigidaire Broil Element |
| 9 | WCI K1317973 |
| 11 | WCI K1315121 |
| 12 | WCI K1303601 |
| 13 | END PANEL, LH, ALMOND |
| 16 | RAIL, DWR, LH |
| 19 | BRACKET THERM. BULB |
| 20 | WCI K1317644 |
| 21 | CHANNEL, OV. SUPT. |
| 24 | CUP, OVEN LT |
| 25 | 316116400 Frigidaire Oven Light Socket |
| 26 | 5304524341 Frigidaire Lens |
| 27 | RETAINING WIRE |
| 28 | WCI Q63749 |
| 30 | SCREW |
| 31 | LEG |
| 32 | GUIDE |
| 33 | SPACER, RAIL |
| 34 | RAIL, DWR., RH |
| 35 | RETAINER-INSUL (2) |
| 37 | END PANEL, RH, ALMOND |
| 38 | 08002868 Frigidaire 0 Screw Assembly |
| 39 | WCI K1323537 |
| 40 | PLUG-BUTTON 3/4`` |
| 41 | SCREW |
| 42 | WASHER, PADDED |
| 43 | RETAINER |
| 45 | PUSH ROD |
| 46 | WCI K1322682 |
| 47 | SWITCH-DOOR |
| 48 | WCI K5032101 |
| 49 | WCI K5025802 |
| 50 | COVER-WIRE |
| 52 | WCI Q500411 |
| 53 | WCI Q401002 |
| 54 | WASHER (6) |
| 56 | STRAP-GROUND |
| 58 | WCI Q410505 |
| 59 | WCI K1325114 |
| 60 | WCI KGM142017 |
| 62 | WCI K1325113 |
| 63 | BACK |
| 64 | WCI K1315110 |
| 65 | TERMINAL BLOCK |
| 66 | SCREW |
| 67 | ROD |
| 68 | WCI K1311331 |
| 69 | VENT TUBE |
| 70 | INSULATION-OVEN BACK |
| 71 | BUMPER |
| 73 | SEE PAGE 5 FOR PARTS |
| 73 | CHANNEL, OVEN SUPPORT |
