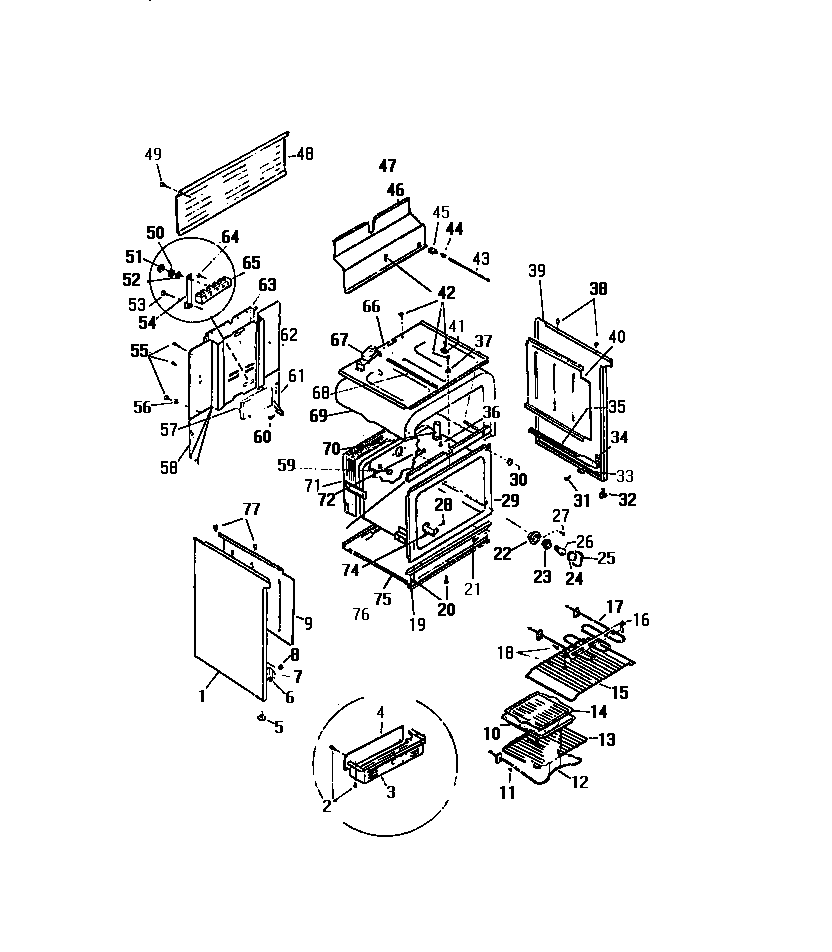

KF450GDD2 07 – BODY, SIDE PANELSadmin2025-04-26T10:06:06+00:00KF450GDD2 07 – BODY, SIDE PANELS
Products
| Position | Product |
|---|
| 1 | END PANEL, LH, ALMOND |
| 3 | WCI K1315121 |
| 4 | WCI K1303601 |
| 7 | RAIL, DWR, LH |
| 10 | WCI K1317973 |
| 12 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 13 | RACK (2) |
| 14 | WCI K1317972 |
| 15 | WCI K5133501 |
| 16 | HANGER |
| 17 | 5303051516 Frigidaire Broil Element |
| 19 | CHANNEL, OV. SUPT. |
| 22 | CUP, OVEN LT |
| 23 | 316116400 Frigidaire Oven Light Socket |
| 24 | 5304524341 Frigidaire Lens |
| 25 | RETAINING WIRE |
| 26 | WCI Q63749 |
| 28 | 08002868 Frigidaire 0 Screw Assembly |
| 29 | WCI K1325537 |
| 30 | PLUG-BUTTON 3/4`` |
| 31 | SCREW |
| 32 | LEG |
| 33 | GUIDE |
| 34 | SPACER, RAIL |
| 35 | RAIL, DWR., RH |
| 36 | SCREW |
| 37 | WASHER, PADDED |
| 39 | END PANEL, RH, ALMOND |
| 40 | RETAINER-INSUL (2) |
| 41 | RETAINER |
| 43 | PUSH ROD |
| 44 | WCI K1322682 |
| 45 | SWITCH-DOOR |
| 46 | WCI K5032101 |
| 48 | COVER-WIRE |
| 50 | WCI Q500411 |
| 51 | WCI Q401002 |
| 52 | WASHER (6) |
| 54 | STRAP-GROUND |
| 56 | WCI Q410505 |
| 58 | WCI K1325114 |
| 59 | WCI KGM142017 |
| 61 | WCI K1325113 |
| 62 | BACK |
| 63 | COVER, WIRE |
| 64 | SCREW |
| 65 | TERMINAL BLOCK |
| 66 | WCI K5025802 |
| 67 | WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL |
| 68 | ROD |
| 69 | WCI K1311331 |
| 70 | VENT TUBE |
| 71 | INSULATION-OVEN BACK |
| 73 | WCI K1323531 |
| 74 | BRACKET THERM. BULB |
| 76 | WCI K1317644 |
| 77 | BUMPER |
