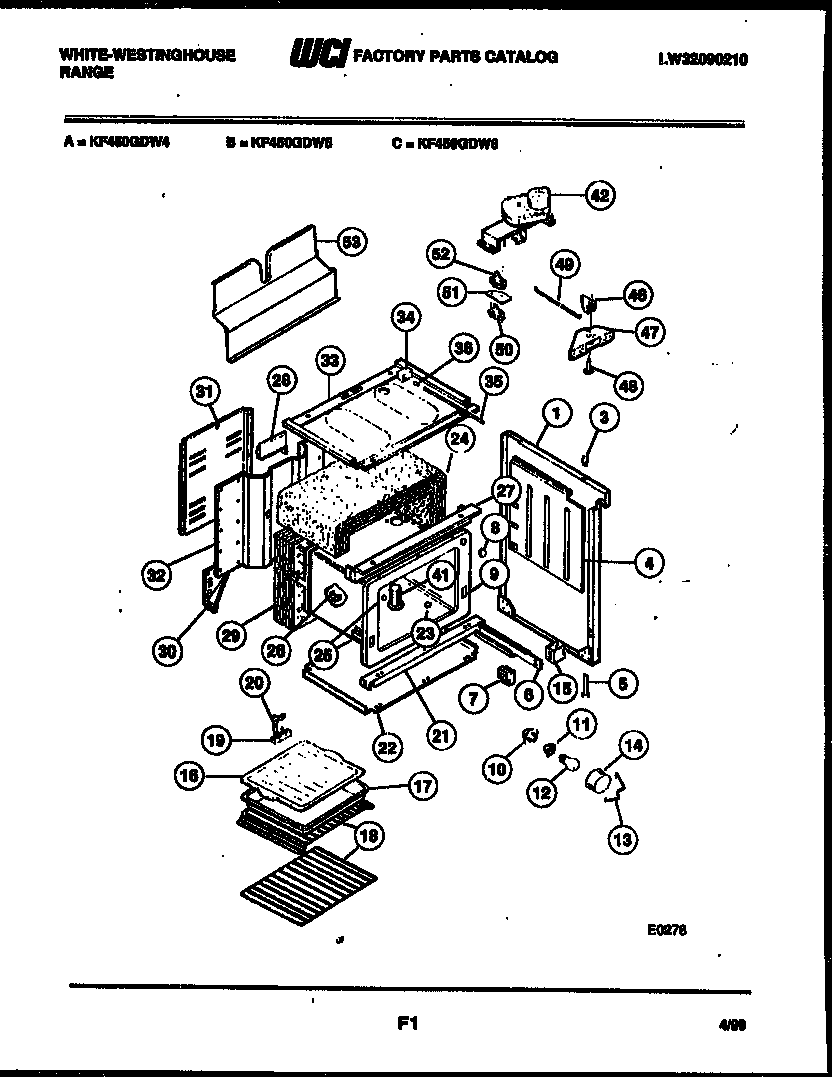

KF450GDD6 06 – BODY PARTS

Products

Position	Product
*75272	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 08012530
1	SIDE PNL – RH (ALMD)
3	BUMPER – COOKTOP (4)
4	RETAINER, INSULATION (2)
5	LEG, LEVELLER (4)
6	WCI 08015746
6	RAIL, DRAWER LH
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	WCI 3204607
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER – LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3205234
17	WCI 3200723
18	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3206275
25	PLUG BUTTON – THERMO BULB HOLE
26	BRACKET-THERMO BULB (2)
27	CHANNEL-OVEN SUPPORT UPPER
28	WCI 3051634
29	INSULATION-OVEN BACK
30	WCI 3017481
30	WCI 3017482
31	COVER – WIRE
32	WCI 3017535
33	WCI 08012542
33A	WASHER-PADDED (3) (NON-ILLUSTRATED)
34	SWITCH – DOOR
35	WCI 08007445
36	WCI 08007444
41	TUBE-OVEN VENT
42	MOTOR-LATCH
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	AXLE – HINGE (2)
49	WCI 3051649
50	SWITCH-LOWER
51	WCI 08003090
52	SWITCH – UPPER
53	WCI 3206095
