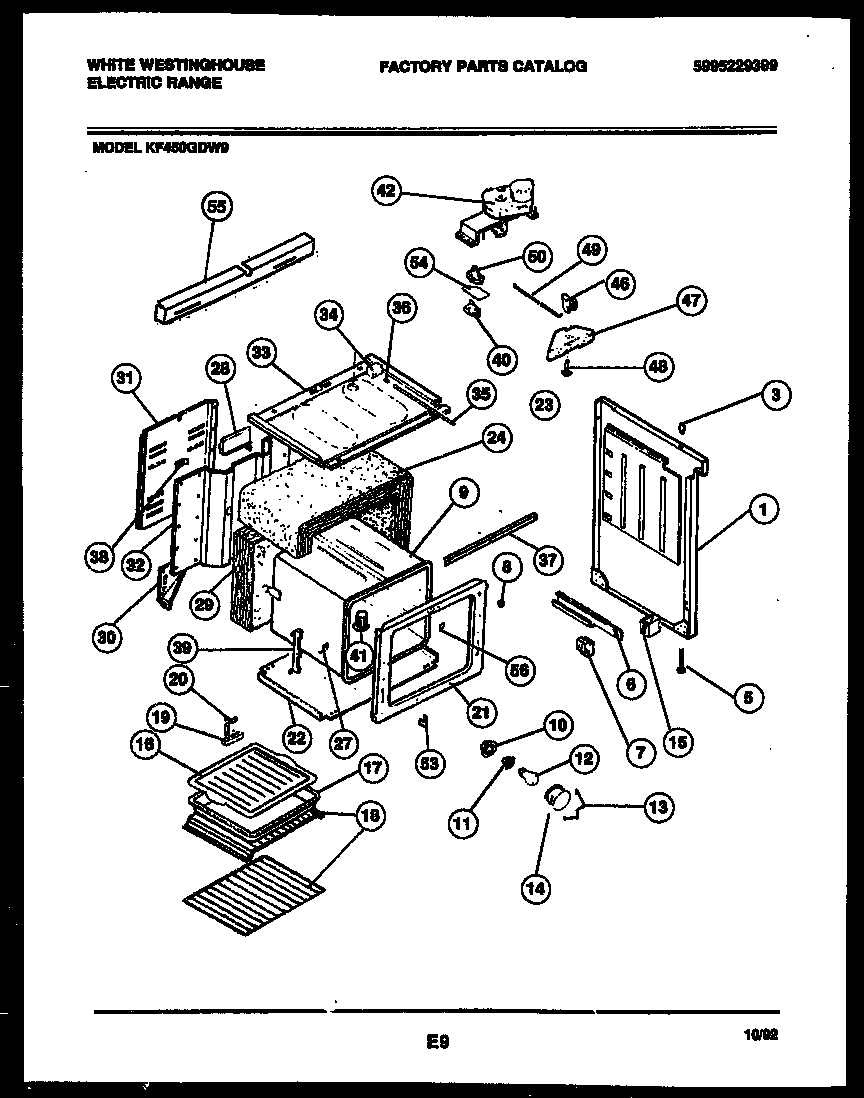

KF450GDD9 06 – BODY PARTS

KF450GDD9 06 – BODY PARTS

Written by

in

KF450GDD9 06 – BODY PARTS

Products

PositionProduct
*699385303284616 Frigidaire Range Bulb Clip Thermostat
*69938ANTI-TIP KIT, (NON-ILLUSTRATED)
*69938WCI 191S021P46
1SIDE PANEL RH-ALMD
1ASIDE PANEL LH-ALMD
3ARETAINER, INSULATION (2)
3BUMPER, COOKTOP (4)
5SCREW-LEVELING (4)
6ARAIL, DRAWER LH
6WCI 5308015746
7GUIDE-DRAWER FRNT (2)
8BUTTON-PLUG
9OVEN LINER
10WCI 5303271606
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINER-LENS
145304524341 Frigidaire Lens
15SPACER, DRAWER RAIL (2)
16WCI 3205234
17WCI 5303292688
18ARACK-OFFSET
18316067902 Frigidaire Oven Rack
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE=GROUND STRAP
21FRONT – OVEN
22WCI 3206275
24INSULATION, OVEN WRAP
27WCI 3201632
28WCI 3051634
29INSULATION
30WCI 3017481
30AWCI 3017482
31WIRE, COVER
32PANEL-BACK
33PANEL – SUBTOP
34SWITCH, DOOR
35WCI 08007445
36WCI 08007444
37WCI 5033207391
38WCI 3016281
39WCI 3201631
40SWITCH, LOWER
41TUBE-OVEN VENT
42LATCH, MOTOR
46WCI 3202387
47HOUSING-DOOR LATCH
48AXLE – HINGE (2)
49WCI 3051649
50WCI 3202114
53WCI 3019063
54WCI 08003090
55WCI 3206095
56WCI 3202082
