KF450GDF1 02 – BACKGUARD

KF450GDF1 02 – BACKGUARD

Written by

in

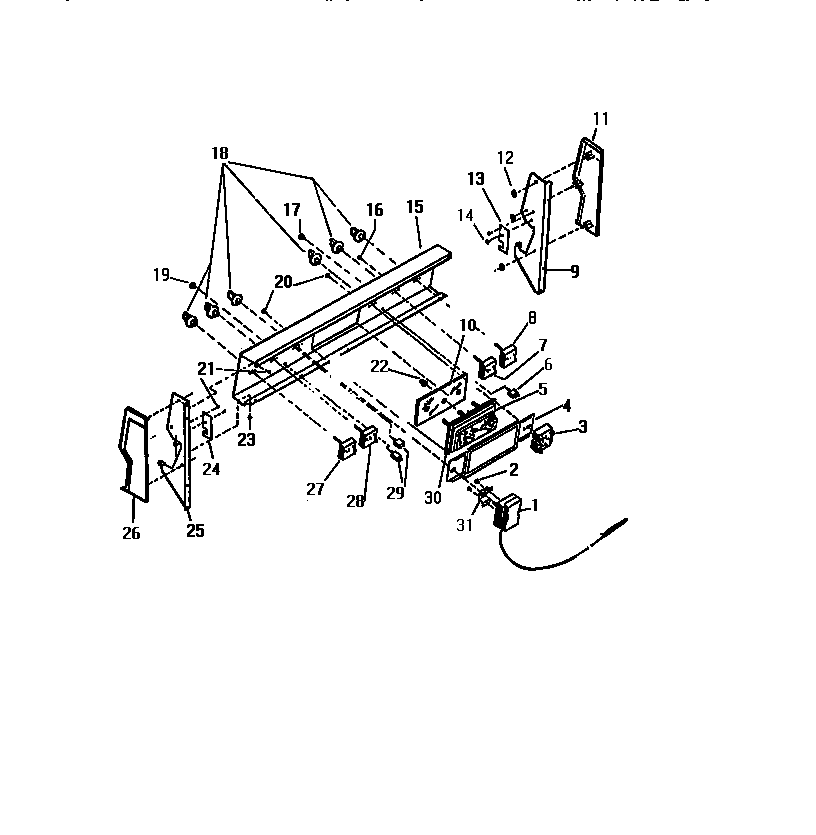

KF450GDF1 02 – BACKGUARD

Products

PositionProduct
*88602WCI K5044101
*88600WCI K5044001
*88601WCI K5044102
1WCI K5101903
2SCREW – THERMO BRACKET 6-32 X 3/16 (2)
3WCI K5041801
4WCI K5296301
5WCI K5033001
6LIGHT,SIGNAL (SURFACE UNIT 125V)
9WCI K5025202
10WCI K1167678
11WCI K5030402
12NUT (3)
1408002868 Frigidaire 0 Screw Assembly
15WCI K5158701
18WCI K5026901
19LENS
20SCREW
22KNOB, TIMER
23WCI K1164566
24WCI K5025001
25WCI K5025201
26WCI K5030401
285303935086 Frigidaire Oven Top Burner Switch Kit
29LIGHT, SIGNAL (CLEAN & OVEN 250V.)
30BEZEL
31WCI K5267103
