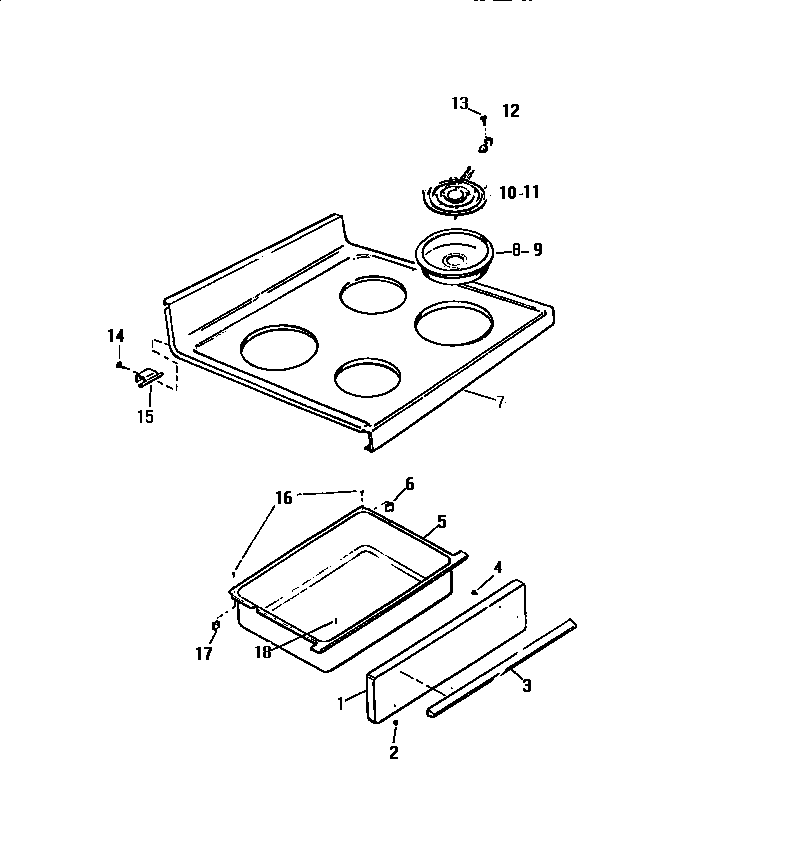

KF450GDF3 03 – TOP & DRAWER

Products

Position	Product
1	WCI K1325097
2	5303013272 Frigidaire Oven Nut
3	HANDLE
5	DRAWER
7	PLATEFORM FR. AV.
8	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
9	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
10	318372211 Frigidaire Oven 6" Electric Range Burner Kit
11	316442301 Frigidaire Oven 8 Coil Element 2600W
12	5303935058 Frigidaire Oven Burner Receptacle Kit
13	5308014215 Frigidaire Oven Screw
14	08002868 Frigidaire 0 Screw Assembly
15	WCI K5024901
17	GUIDE
18	SCREW
