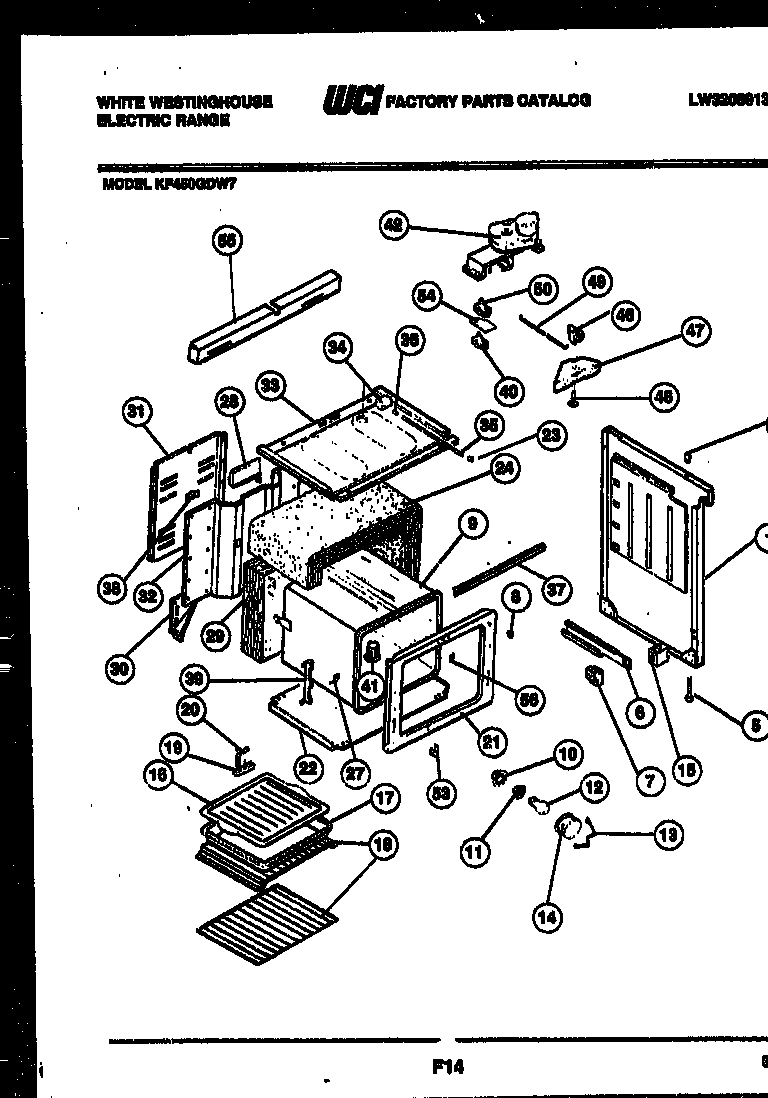

KF450GDF7 06 – BODY PARTS

Products

Position	Product
*27181	CLIP CAPILLARY
*27181	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI K005024605
1A	WCI K005024606
3	BUMPER - COOKTOP (4)
3	RETAINER, INSULATION (2)
5	LEG, LEVELLER (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	BODY-OVEN
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER - LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3205234
17	WCI 3205232
18	316067902 Frigidaire Oven Rack
18A	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	WCI 5303207390
22	WCI 3206275
23	WCI 3051251
27	WCI 3201632
28	WCI 3051634
29	INSULATION-OVEN BACK
30	WCI 3017481
30A	WCI 3017482
31	COVER - WIRE
32	PANEL-BACK
33	WCI 08012542
34	SWITCH - DOOR
35	WCI 08007445
36	WCI 08007444
37	WCI 5033207391
38	WCI 3016281
39	WCI 3201631
40	SWITCH, LOWER
41	TUBE-OVEN VENT
42	MOTOR-LATCH
46	WCI 3202387
47	HOUSING-DOOR LATCH
48	AXLE - HINGE (2)
49	WCI 3051649
50	WCI 3202114
53	WCI 3019063
54	WCI 08003090
55	WCI 3206095
56	WCI 3202082
