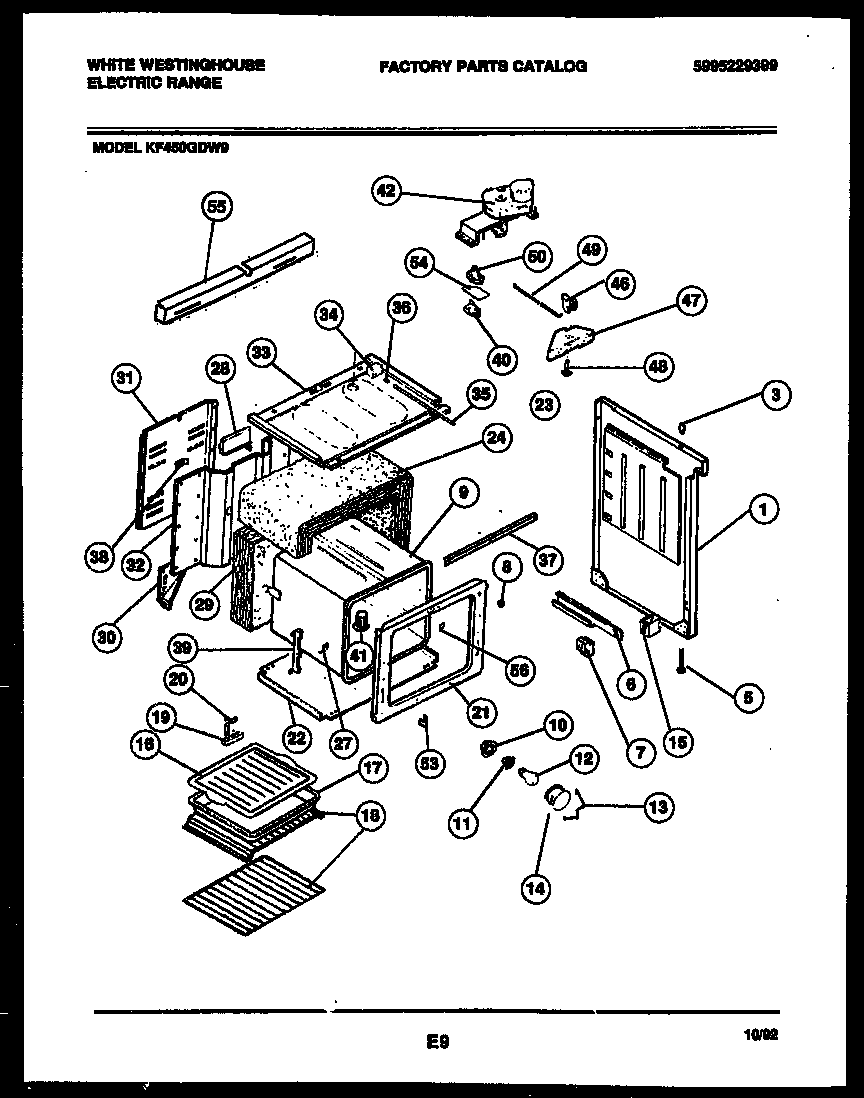

KF450GDH9 06 – BODY PARTS

Products

Position	Product
*69938	WCI 191S021P46
*69938	5303284616 Frigidaire Range Bulb Clip Thermostat
*69938	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	PANEL-SIDE RH WHEAT
1A	PANEL-SIDE LH WHEAT
3	BUMPER, COOKTOP (4)
3A	RETAINER, INSULATION (2)
5	SCREW-LEVELING (4)
6	WCI 5308015746
6A	RAIL, DRAWER LH
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	OVEN LINER
10	WCI 5303271606
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER-LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3205234
17	WCI 5303292688
18A	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE=GROUND STRAP
21	FRONT – OVEN
22	WCI 3206275
24	INSULATION, OVEN WRAP
27	WCI 3201632
28	WCI 3051634
29	INSULATION
30A	WCI 3017482
30	WCI 3017481
31	WIRE, COVER
32	PANEL-BACK
33	PANEL – SUBTOP
34	SWITCH, DOOR
35	WCI 08007445
36	WCI 08007444
37	WCI 5033207391
38	WCI 3016281
39	WCI 3201631
40	SWITCH, LOWER
41	TUBE-OVEN VENT
42	LATCH, MOTOR
46	WCI 3202387
47	HOUSING-DOOR LATCH
48	AXLE – HINGE (2)
49	WCI 3051649
50	WCI 3202114
53	WCI 3019063
54	WCI 08003090
55	WCI 3206095
56	WCI 3202082
