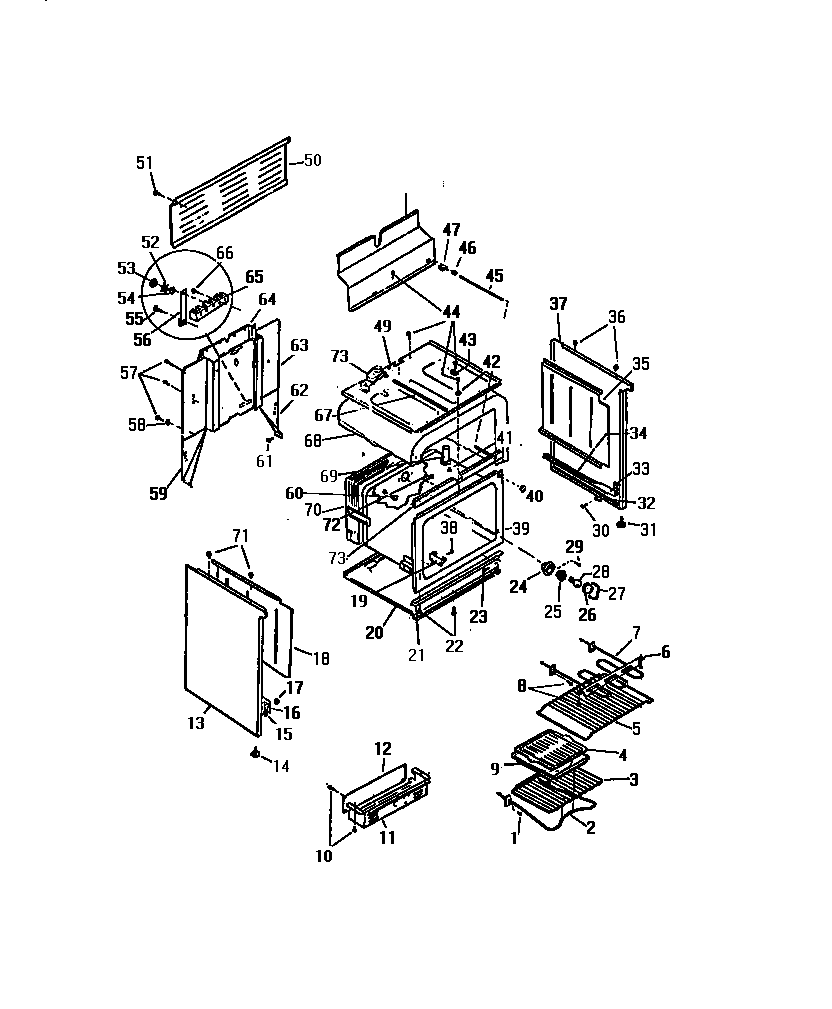

KF450GDV1 06 – BODY, SIDE PANELS

Products

Position	Product
2	5303051519 Frigidaire Oven 2600W Bake Element
3	RACK (2)
4	WCI K1317972
5	WCI K5133501
6	HANGER
7	5303051516 Frigidaire Broil Element
9	WCI K1317973
11	WCI K1315121
12	WCI K1303601
13	WCI K5024608
16	RAIL, DWR, LH
19	BRACKET THERM. BULB
20	WCI K1317644
21	CHANNEL, OV. SUPT.
24	CUP, OVEN LT
25	316116400 Frigidaire Oven Light Socket
26	5304524341 Frigidaire Lens
27	RETAINING WIRE
28	WCI Q63749
30	SCREW
31	LEG
32	GUIDE
33	SPACER, RAIL
34	RAIL, DWR., RH
35	RETAINER-INSUL (2)
37	WCI K5024607
38	08002868 Frigidaire 0 Screw Assembly
39	WCI K1323537
40	PLUG-BUTTON 3/4``
41	SCREW
42	WASHER, PADDED
43	RETAINER
45	PUSH ROD
46	WCI K1322682
47	SWITCH-DOOR
48	WCI K5032101
49	WCI K5025802
50	COVER-WIRE
52	WCI Q500411
53	WCI Q401002
54	WASHER (6)
56	STRAP-GROUND
58	WCI Q410505
59	WCI K1325114
60	WCI KGM142017
62	WCI K1325113
63	BACK
64	WCI K1315110
65	TERMINAL BLOCK
66	SCREW
67	ROD
68	WCI K1311331
69	VENT TUBE
70	INSULATION-OVEN BACK
71	BUMPER
73	SEE PAGE 5 FOR PARTS
73	CHANNEL, OVEN SUPPORT
