KF450GDV3 05 – DOOR LATCH ASSEMBLY

KF450GDV3 05 – DOOR LATCH ASSEMBLY

Written by

in

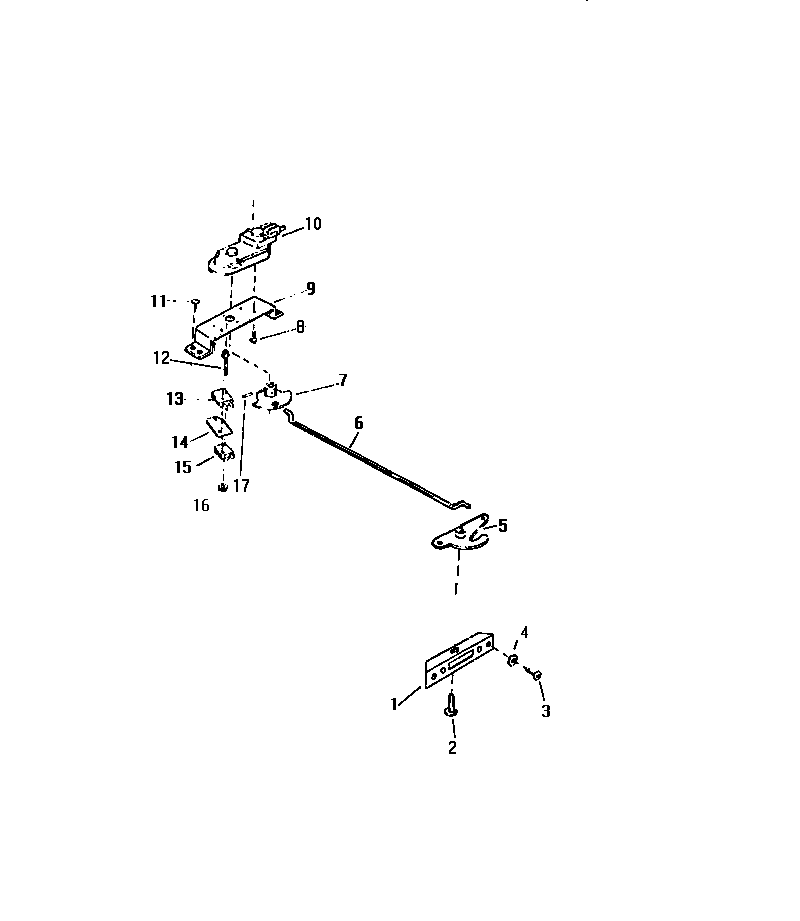

KF450GDV3 05 – DOOR LATCH ASSEMBLY

Products

PositionProduct
1HOUSING, DOOR LATCH
2AXLE
3WCI K1164550
4WASHER, PADDED
5WCI K5260202
6WCI K5271201
7WCI K5151605
8WCI K5151604
9SUPPORT
10WCI K5151603
1108002868 Frigidaire 0 Screw Assembly
12WCI K5151610
13SWITCH-LOWER
14INSULATOR
15WCI K1167190
165303013272 Frigidaire Oven Nut
17WCI K5151606
