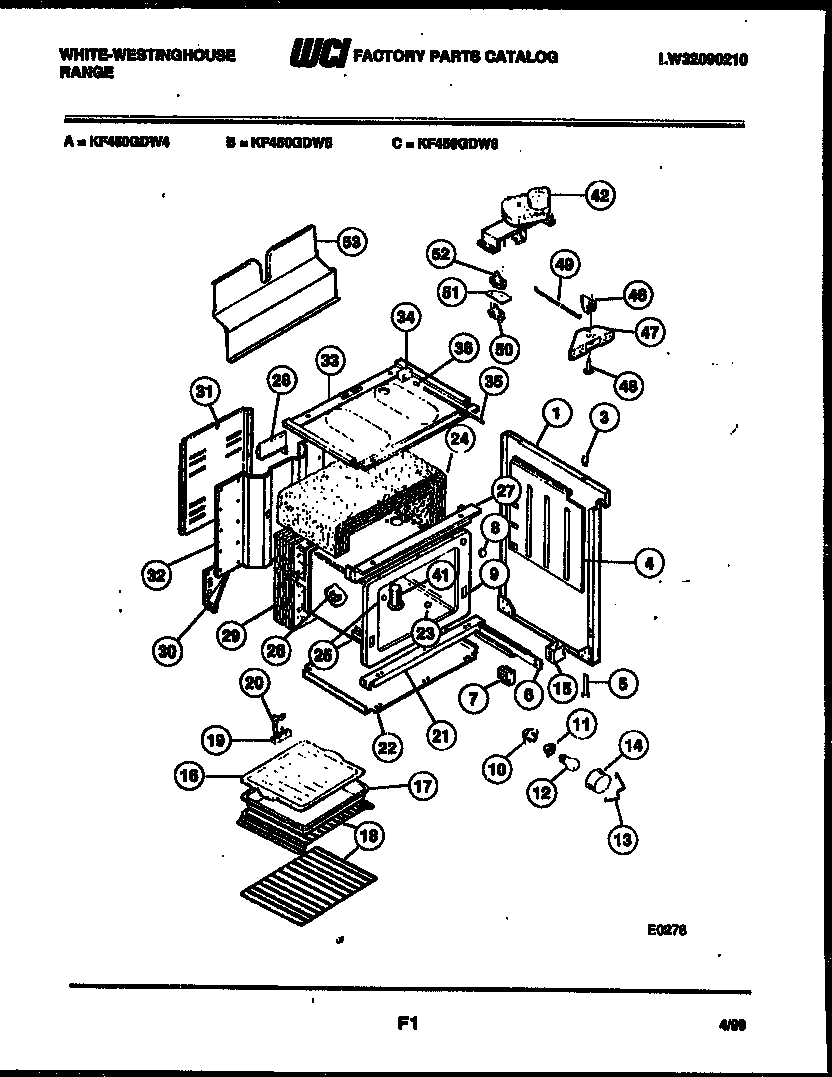

KF450GDV4 06 – BODY PARTS

Products

Position	Product
1	PANEL-END LH AVOC
1	PANEL-END RH AVOC
3	BUMPER - COOKTOP (4)
4	RETAINER, INSULATION (2)
5	LEG-LEVELER (4)
6	RAIL, DRAWER LH
6	WCI 08015746
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	WCI 3204607
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER - LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3051562
17	WCI 3200723
18	WCI K001311570
18	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	CHANNEL-OVEN SUPPORT LOWER
22	WCI 3017394
25	PLUG BUTTON - THERMO BULB HOLE
26	BRACKET-THERMO BULB (2)
27	CHANNEL-OVEN SUPPORT UPPER
28	WCI 3051634
29	INSULATION-OVEN BACK
30	WCI K005285802
30	WCI K005285804
31	WIRE COVER
32	GUSSET-REAR RH
33A	WASHER-PADDED (3) (NON-ILLUSTRATED)
33	WCI 08012542
34	SWITCH - DOOR
35	WCI K001323421
36	WCI 08007444
41	TUBE-OVEN VENT
42	MOTOR-LATCH
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	AXLE - HINGE (2)
49	WCI 3051649
50	SWITCH-LOWER
51	WCI 08003090
52	SWITCH - UPPER
53	WCI K005029503
