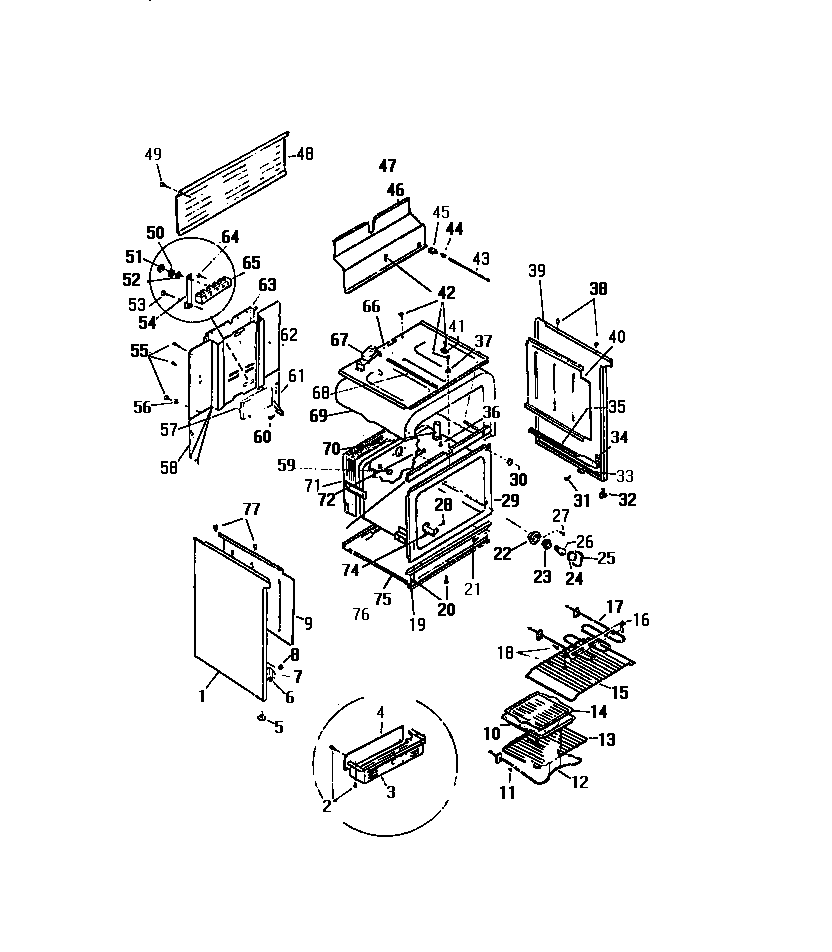

KF450GDW3 07 – BODY, SIDE PANELS

Products

Position	Product
1	WCI K5024602
7	RAIL, DWR, LH
10	WCI K1317973
12	5303051519 Frigidaire Oven 2600W Bake Element
13	RACK (2)
14	WCI K1317972
15	WCI K5133501
16	HANGER
17	5303051516 Frigidaire Broil Element
19	CHANNEL, OV. SUPT.
22	CUP, OVEN LT
23	316116400 Frigidaire Oven Light Socket
24	5304524341 Frigidaire Lens
25	RETAINING WIRE
26	WCI Q63749
28	08002868 Frigidaire 0 Screw Assembly
29	WCI K1325537
30	PLUG-BUTTON 3/4``
31	SCREW
32	LEG
33	GUIDE
34	SPACER, RAIL
35	RAIL, DWR., RH
36	SCREW
37	WASHER, PADDED
39	WCI K5024601
40	RETAINER-INSUL (2)
41	RETAINER
43	PUSH ROD
44	WCI K1322682
45	SWITCH-DOOR
47	WCI K5029503
48	COVER-WIRE
50	WCI Q500411
51	WCI Q401002
52	WASHER (6)
54	STRAP-GROUND
56	WCI Q410505
57	WCI K5134501
58	WCI K1325114
59	WCI KGM142017
61	WCI K1325113
62	BACK
63	COVER, WIRE
64	SCREW
65	TERMINAL BLOCK
66	WCI K5025802
67	WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
68	ROD
69	WCI K1311331
70	VENT TUBE
71	INSULATION-OVEN BACK
73	WCI K1323531
74	BRACKET THERM. BULB
75	WCI K5276502
77	BUMPER
