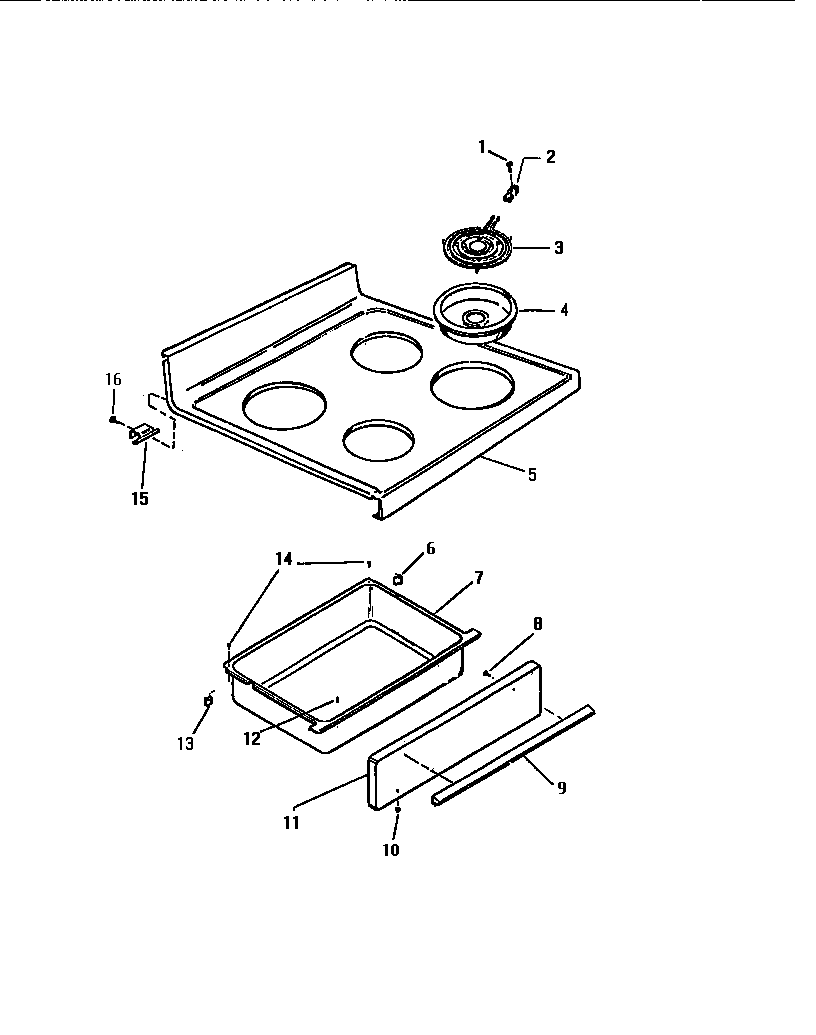

KF460GDD1 03 – TOP, DRAWER

KF460GDD1 03 – TOP, DRAWER

Written by

in

KF460GDD1 03 – TOP, DRAWER

Products

PositionProduct
15308014215 Frigidaire Oven Screw
25303935058 Frigidaire Oven Burner Receptacle Kit
3318372211 Frigidaire Oven 6" Electric Range Burner Kit
3316442301 Frigidaire Oven 8 Coil Element 2600W
4316048413 Frigidaire Oven Range Chrome 8" Drip Bow
4316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
5WCI K5024215
7DRAWER
9HANDLE – DRAWER (CHROME)
105303013272 Frigidaire Oven Nut
11PANEL DRAWER, ALMOND
13GUIDE
14SCREW
15WCI K5024901
1608002868 Frigidaire 0 Screw Assembly
