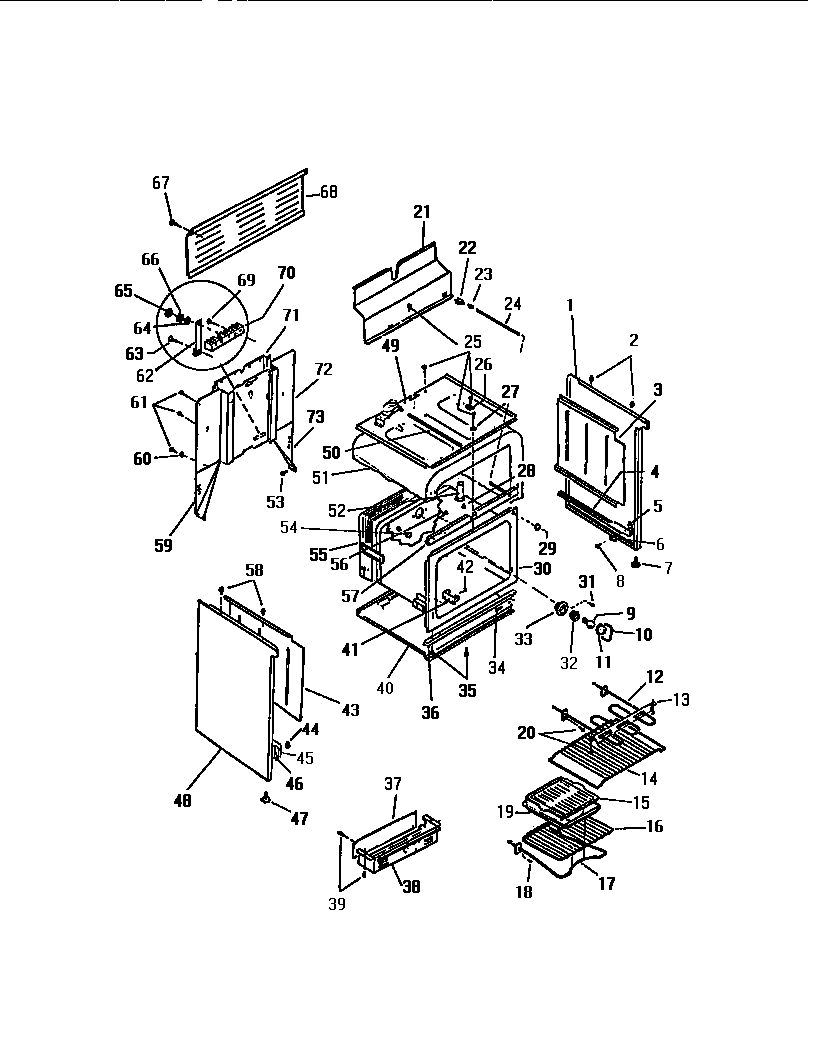

KF460GDD1 06 – BODY, SIDE PANELS

Products

Position	Product
1	END PANEL, RH, ALMOND
4	RAIL, DWR., RH
8	SCREW
9	WCI Q63749
10	RETAINING WIRE
11	5304524341 Frigidaire Lens
12	5303051516 Frigidaire Broil Element
13	HANGER
14	WCI K5133501
15	WCI K1317972
16	RACK (2)
17	5303051519 Frigidaire Oven 2600W Bake Element
19	WCI K1317973
21	WCI K5032101
22	SWITCH-DOOR
23	WCI K1322682
24	PUSH ROD
26	RETAINER
27	WASHER, PADDED
28	SCREW
29	PLUG-BUTTON 3/4``
30	WCI K1325537
32	316116400 Frigidaire Oven Light Socket
33	CUP, OVEN LT
36	CHANNEL, OV. SUPT.
37	WCI K1303601
38	WCI K1315121
40	WCI K1317644
41	BRACKET THERM. BULB
42	08002868 Frigidaire 0 Screw Assembly
43	RETAINER-INSUL (2)
44	GUIDE
45	RAIL, DWR, LH
46	SPACER, RAIL
47	LEG
48	END PANEL, LH, ALMOND
49	WCI K5025802
50	ROD
51	WCI K1311331
52	VENT TUBE
54	WCI KGM142017
55	INSULATION-OVEN BACK
57	CHANNEL, OVEN SUPPORT
58	BUMPER
59	WCI K1325114
60	WCI Q410505
62	STRAP-GROUND
64	WCI Q402603
65	WCI Q401002
66	WCI Q500411
68	COVER-WIRE
69	SCREW
70	TERMINAL BLOCK
71	WCI K1315110
72	BACK
73	WCI K1325113
