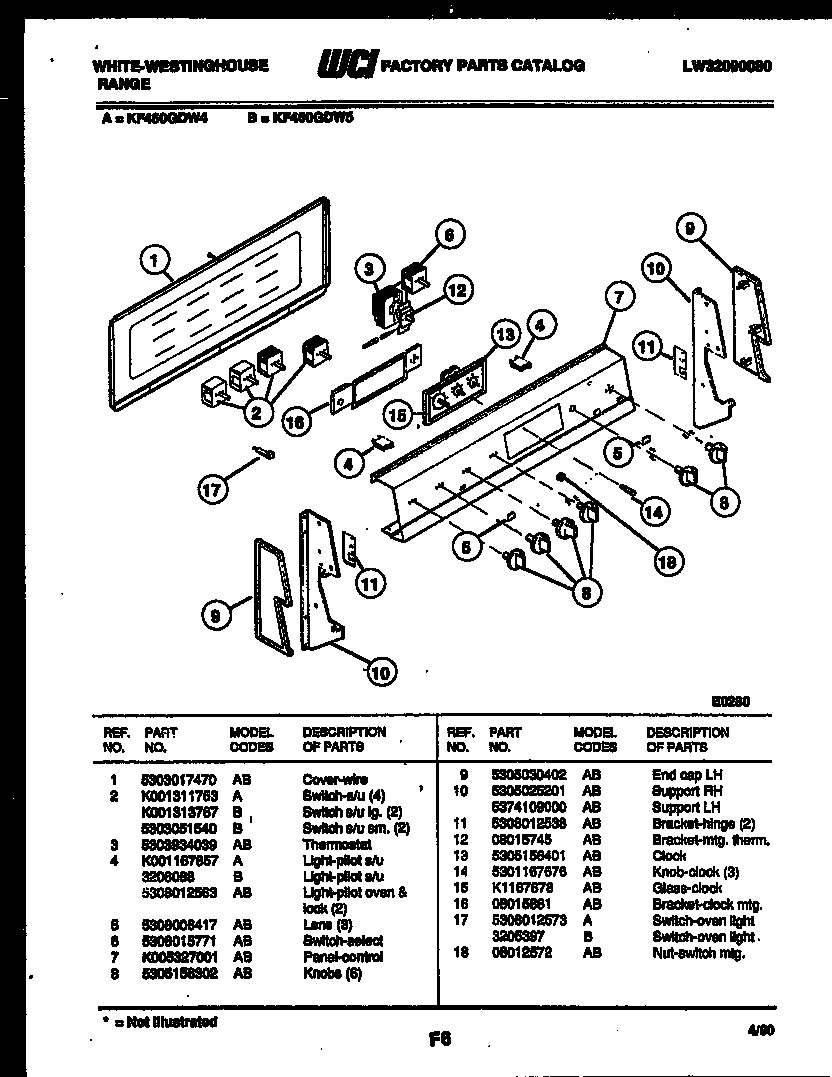

KF460GDD4 02 – CONTROL PANEL

KF460GDD4 02 – CONTROL PANEL

Written by

in

KF460GDD4 02 – CONTROL PANEL

Products

PositionProduct
1COVER, WIRE.
2SWITCH-SURFACE UNIT (4)
3THERMOSTAT
4ALIGHT-PILOT OVEN & CLEAN
4WCI K001167857
5LENS (2)
6WCI 5308015771
7WCI K005327001
8KNOBS (6)
9WCI 5305030402
10ASUPPORT LH
10SUPPORT RH
11BRACKET, HINGE (2)
12BRACKET-THERM MTG
13WCI 5305156401
14WCI 5301167676
15WCI K1167678
16BRACKET-MTG CLOCK
17WCI 5308012573
18NUT-KNURLED
