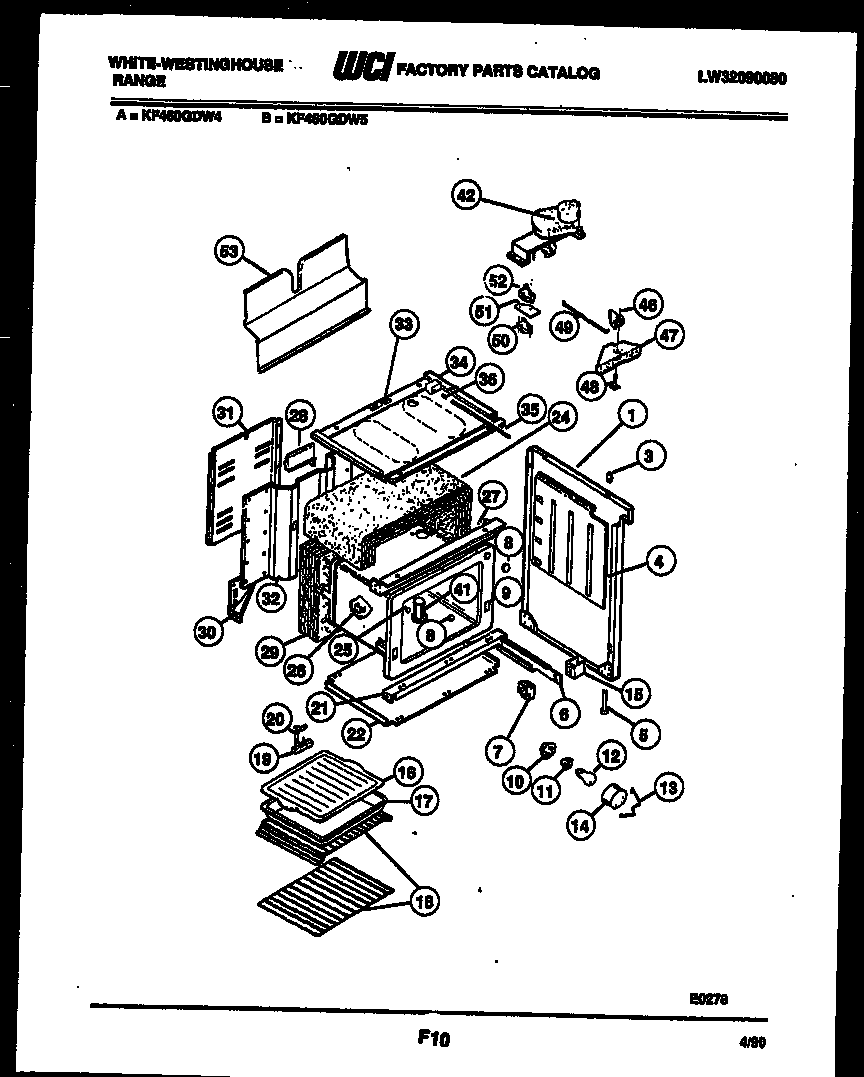

KF460GDD4 06 – BODY PARTS

Products

Position	Product
1A	SIDE PANEL LH-ALMD
1	SIDE PANEL RH-ALMD
3	BUMPER, COOKTOP (4)
4	RETAINER, INSULATION (2)
5	SCREW-LEVELING (4)
6A	RAIL, DRAWER LH
6	WCI 5308015746
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	WCI 3204607
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER-LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3203164
17	WCI 3200723
18	316067902 Frigidaire Oven Rack
18A	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	CHANNEL-OVEN SUPPORT UPPER
22	PNL – BOTTOM
25	PLUG BUTTON – THERMO BULB HOLE
26	BRACKET-THERMO BULB (2)
27	CHANNEL-OVEN SUPPORT LOWER
28	WCI 3051634
29	INSULATION
30A	WCI 3017482
30	WCI 3017481
31	WIRE, COVER
32	WCI 3017535
33A	WASHER-PADDED (3) (NON-ILLUSTRATED)
33	WCI 08012542
34	SWITCH, DOOR
35	WCI K001167847
36	WCI 08007444
41	TUBE-OVEN VENT
42	LATCH, MOTOR
46	WCI 3202387
47	HOUSING-DOOR LATCH
48	AXLE – HINGE (2)
49	WCI 3051649
50	SWITCH-LOWER
51	WCI 08003090
52	SWITCH – UPPER
53	WCI 3017602
