KF460GDF1 05 – DOOR LATCH ASSY. – Aparts

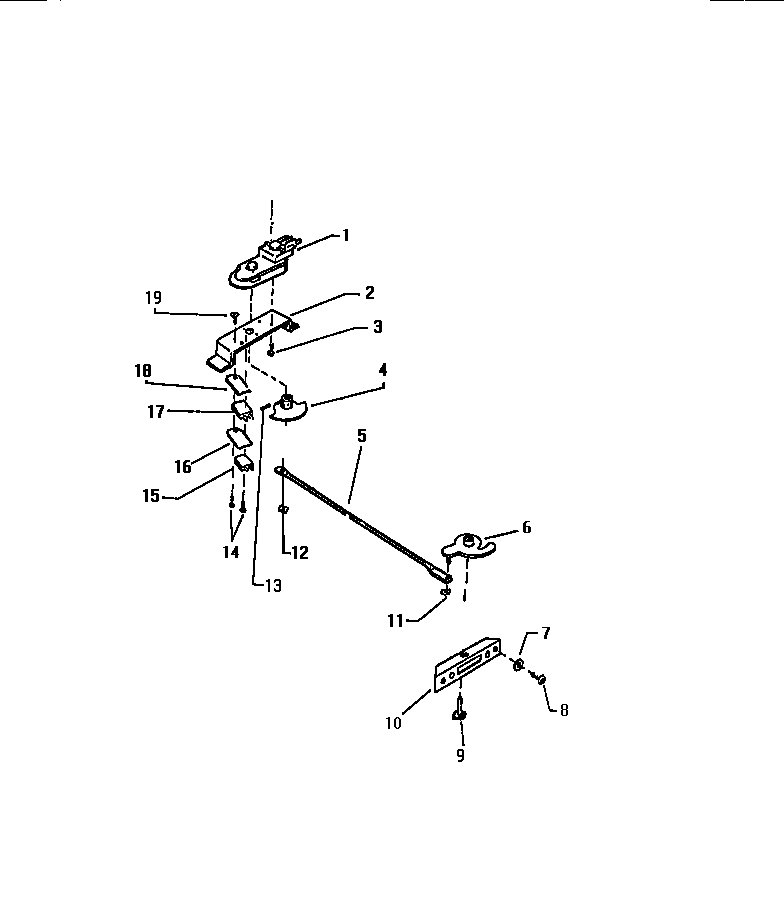

KF460GDF1 05 – DOOR LATCH ASSY.

Products

Position	Product
1	WCI K1318885
2	WCI K1324263
3	WCI K5157101
4	WCI K1325071
5	WCI K1317813
6	WCI K5260201
7	WASHER, PADDED
8	WCI K1164550
9	AXLE
10	HOUSING, DOOR LATCH
12	WCI K1164424
13	WCI KGM455105
14	WCI K1164502
15	WCI K1167190
17	SWITCH-LOWER
18	INSULATOR
19	08002868 Frigidaire 0 Screw Assembly
