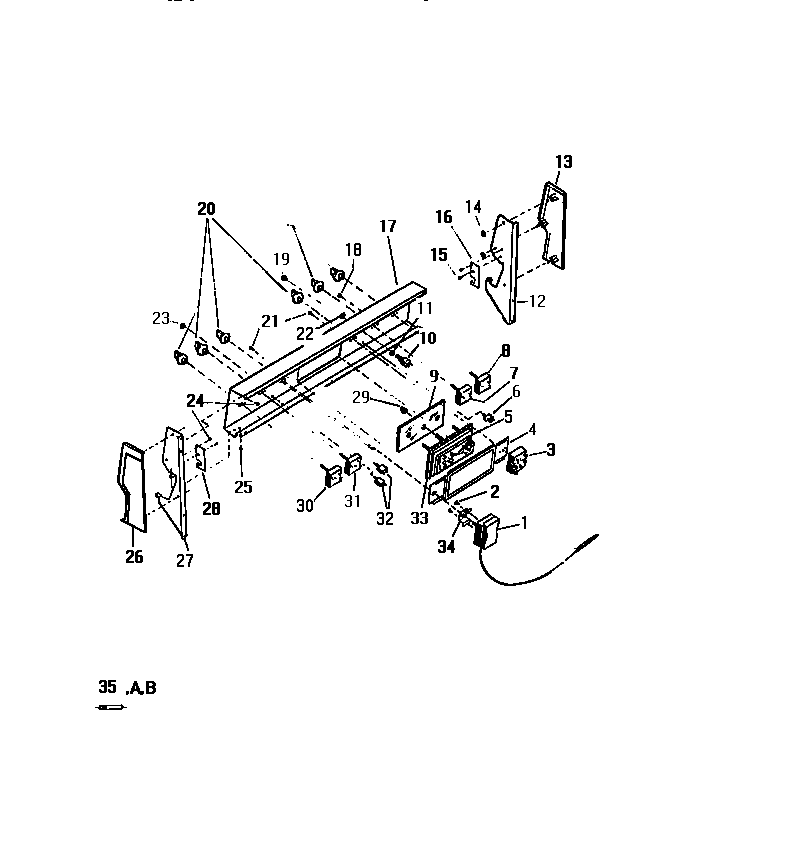

KF460GDF2 02 – BACKGUARD

Products

Position	Product
1	WCI K1324562
2	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
3	WCI K5041801
4	WCI K5296301
5	WCI K5033001
6	LIGHT,SIGNAL (SURFACE UNIT 125V)
9	WCI K1167678
10	WCI K5051801
11	WCI Q501442
12	WCI K5025202
13	WCI K5030402
14	NUT (3)
15	08002868 Frigidaire 0 Screw Assembly
17	PANEL, BACKGUARD
20	KNOB (6)
21	SCREW
22	WCI K5051701
23	LENS
25	WCI K1164566
26	WCI K5030401
27	WCI K5025201
28	WCI K5025001
29	KNOB, TIMER
31	5303935086 Frigidaire Oven Top Burner Switch Kit
32	LIGHT, SIGNAL (CLEAN & OVEN 250V.)
33	BEZEL
34	WCI K5267103
35A	WCI K5044101
35B	WCI K5044102
35	WCI K5044001
