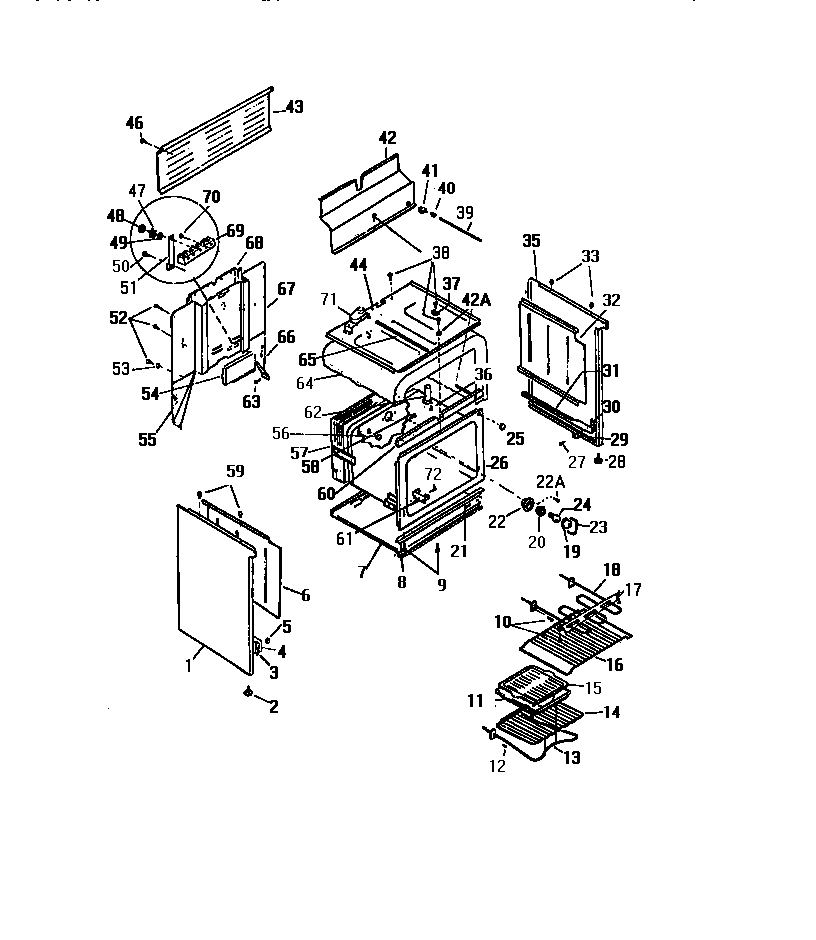

KF460GDF2 06 – BODY, SIDE PANELS

Products

Position	Product
1	WCI K5024606
4	RAIL, DWR, LH
7	WCI K5276502
8	CHANNEL, OV. SUPT.
11	WCI K1317973
13	5303051519 Frigidaire Oven 2600W Bake Element
14	RACK (2)
15	WCI K1317972
16	WCI K5133501
17	HANGER
18	5303051516 Frigidaire Broil Element
19	5304524341 Frigidaire Lens
20	316116400 Frigidaire Oven Light Socket
22	CUP, OVEN LT
23	RETAINING WIRE
24	WCI Q63749
25	PLUG-BUTTON 3/4“
26	WCI K1325537
27	SCREW
28	LEG
29	GUIDE
30	SPACER, RAIL
31	RAIL, DWR., RH
32	RETAINER-INSUL (2)
35	WCI K5024605
36	SCREW
37	RETAINER
39	PUSH ROD
40	WCI K1322682
41	SWITCH-DOOR
42	WCI K5029503
42A	WASHER, PADDED
43	COVER-WIRE
44	WCI K5025802
47	WCI Q500411
48	WCI Q401002
49	WASHER (6)
51	STRAP-GROUND
53	WCI Q410505
54	WCI K5134501
55	WCI K1325114
56	WCI KGM142017
57	INSULATION-OVEN BACK
59	BUMPER
60	CHANNEL, OVEN SUPPORT
61	BRACKET THERM. BULB
62	VENT TUBE
64	WCI K1311331
65	ROD
66	WCI K1325113
67	BACK
68	COVER, WIRE
69	TERMINAL BLOCK
70	SCREW
71	WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
72	08002868 Frigidaire 0 Screw Assembly
