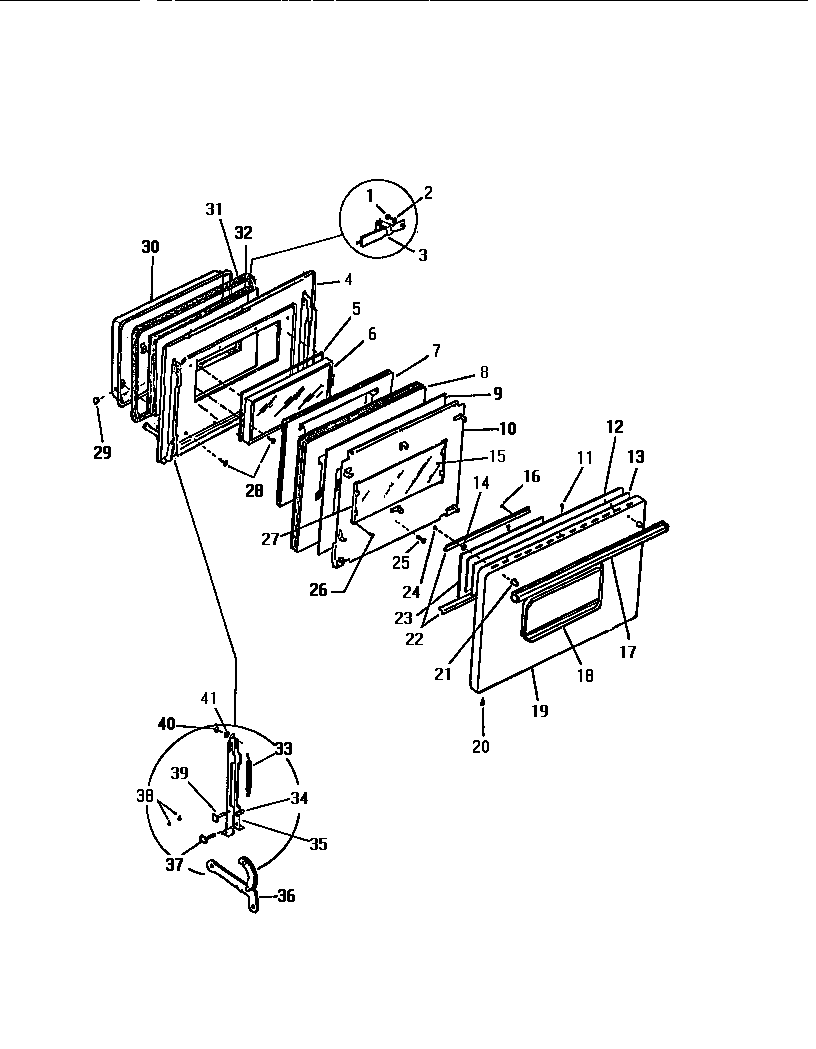

KF460GDH1 04 – DOOR

Products

Position	Product
3	STRIKE ASSEMBLY
4	WCI K1324721
5	WCI K1322069
6	WCI K1322068
7	WCI K1322651
8	WCI K1322652
9	WCI K1318825
10	WCI K1323173
12	INSULATION-PANEL
13	PANEL-INSULATOR PAD
14	WCI Q410505
15	WCI K1317924
16	218359202 Frigidaire Refrigerator Screw
17	WCI K1326038
18	MOULDING OUTER GLASS
19	WCI K1317633
21	SPACER (2)
22	BRACKET-MTG (2)
23	WCI K1313244
24	WCI K5104201
25	WCI K1164557
27	RETAINER, GLASS (2)
28	08002868 Frigidaire 0 Screw Assembly
29	WCI KGM142001
30	WCI K1323752
31	GASKET
32	WCI K1322622
33	WCI K1302501
34	ROLLER PACKAGE-OVEN DOOR (2)
35	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
36	ARM ASSY.
37	AXLE
39	RIVET
40	WCI K1164550
41	WASHER, PADDED
