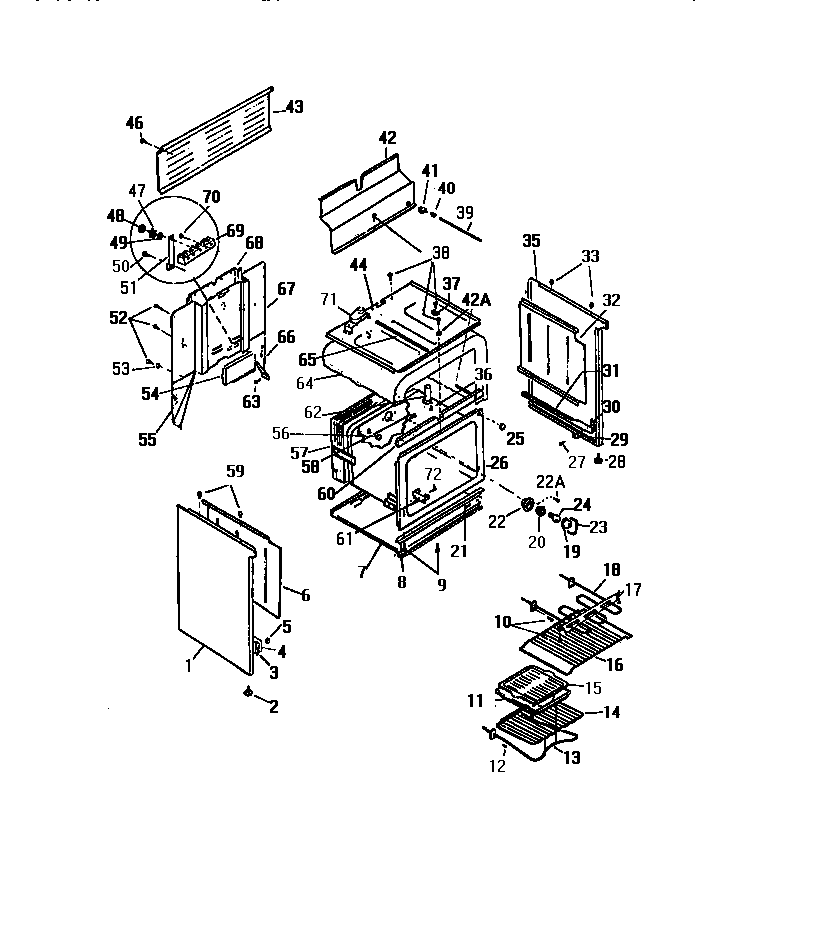

KF460GDH2 06 – BODY, SIDE PANELSadmin2025-04-26T10:07:06+00:00KF460GDH2 06 – BODY, SIDE PANELS
Products
| Position | Product |
|---|
| 1 | PANEL-END RH-WHEAT |
| 4 | RAIL, DWR, LH |
| 7 | WCI K5276502 |
| 8 | CHANNEL, OV. SUPT. |
| 11 | WCI K1317973 |
| 13 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 14 | RACK (2) |
| 15 | WCI K1317972 |
| 16 | WCI K5133501 |
| 17 | HANGER |
| 18 | 5303051516 Frigidaire Broil Element |
| 19 | 5304524341 Frigidaire Lens |
| 20 | 316116400 Frigidaire Oven Light Socket |
| 22 | CUP, OVEN LT |
| 23 | RETAINING WIRE |
| 24 | WCI Q63749 |
| 25 | PLUG-BUTTON 3/4`` |
| 26 | WCI K1325537 |
| 27 | SCREW |
| 28 | LEG |
| 29 | GUIDE |
| 30 | SPACER, RAIL |
| 31 | RAIL, DWR., RH |
| 32 | RETAINER-INSUL (2) |
| 35 | WCI K5024609 |
| 36 | SCREW |
| 37 | RETAINER |
| 39 | PUSH ROD |
| 40 | WCI K1322682 |
| 41 | SWITCH-DOOR |
| 42 | WCI K5029503 |
| 42A | WASHER, PADDED |
| 43 | COVER-WIRE |
| 44 | WCI K5025802 |
| 47 | WCI Q500411 |
| 48 | WCI Q401002 |
| 49 | WASHER (6) |
| 51 | STRAP-GROUND |
| 53 | WCI Q410505 |
| 54 | WCI K5134501 |
| 55 | WCI K1325114 |
| 56 | WCI KGM142017 |
| 57 | INSULATION-OVEN BACK |
| 59 | BUMPER |
| 60 | CHANNEL, OVEN SUPPORT |
| 61 | BRACKET THERM. BULB |
| 62 | VENT TUBE |
| 64 | WCI K1311331 |
| 65 | ROD |
| 66 | WCI K1325113 |
| 67 | BACK |
| 68 | COVER, WIRE |
| 69 | TERMINAL BLOCK |
| 70 | SCREW |
| 71 | WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL |
| 72 | 08002868 Frigidaire 0 Screw Assembly |
