KF460GDH4 02 – CONTROL PANEL – Aparts

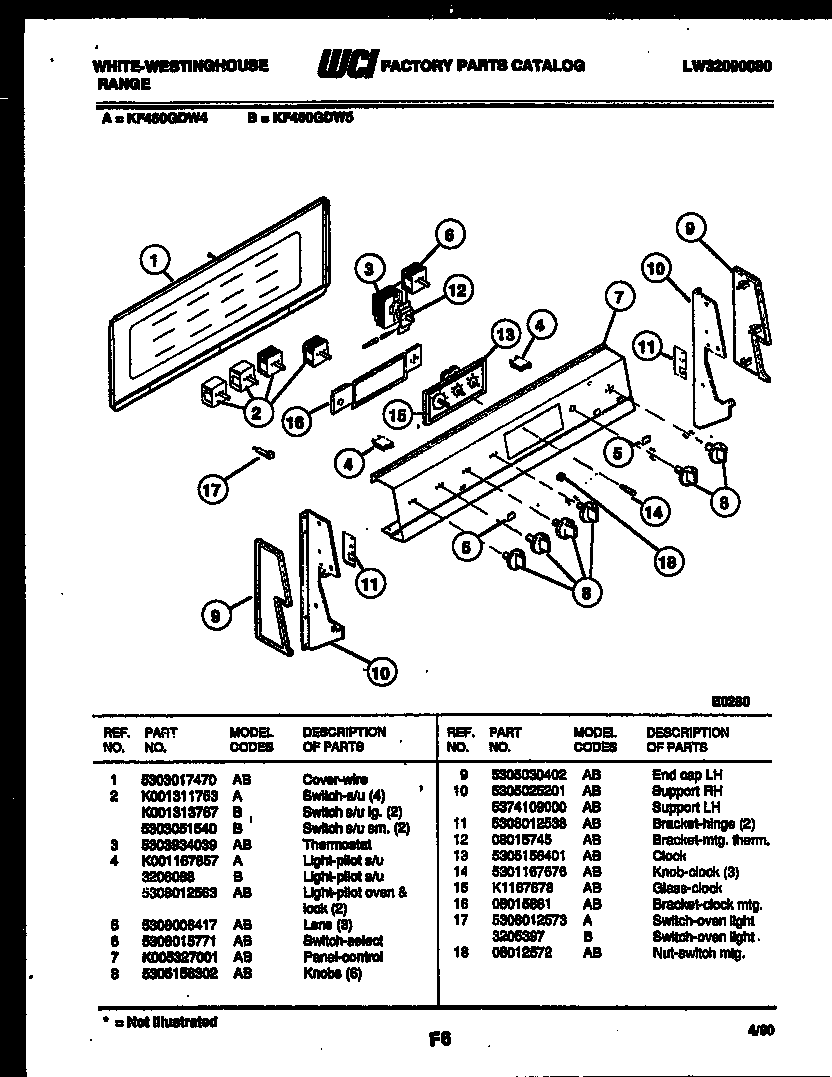

KF460GDH4 02 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2	SWITCH-SURFACE UNIT (4)
3	THERMOSTAT
4A	LIGHT-PILOT OVEN & CLEAN
4	WCI K001167857
5	LENS (2)
6	WCI 5308015771
7	WCI K005327001
8	KNOBS (6)
9	WCI 5305030402
10A	SUPPORT LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
12	BRACKET-THERM MTG
13	WCI 5305156401
14	WCI 5301167676
15	WCI K1167678
16	BRACKET-MTG CLOCK
17	WCI 5308012573
18	NUT-KNURLED
