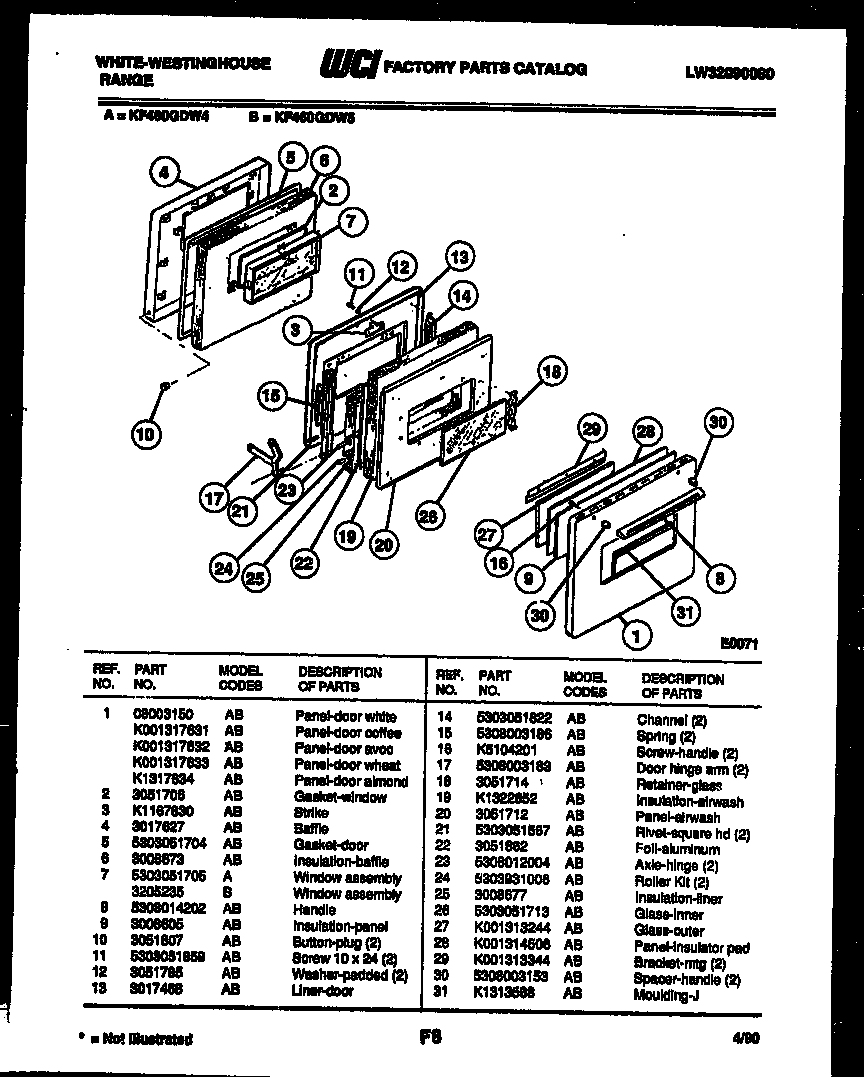

KF460GDH5 04 – DOOR PARTS

Products

Position	Product
1	WCI K001317633
2	WCI 3051706
3	WCI K1167830
4	WCI 3017627
5	SEAL, DOOR
6	WCI 3008673
7	WCI 3205235
8	WCI 5308014202
9	WCI 3008605
10	BUTTON PLUG
11	SCREW 10 X 24 (2)
12	WASHER-PADDED (3) (NON-ILLUSTRATED)
13	LINER, DOOR
14	CHANNEL (2)
15	WCI 5308003186
16	WCI K5104201
17	DOOR HINGE ARM
18	WCI 3051714
19	WCI K1322652
20	WCI 3051712
21	WCI 5303051567
22	FOIL - ALUMINUM J
23	AXLE - HINGE (2)
24	CHANNEL, LH
25	WCI 3008677
26	WCI 5303051713
27	WCI K001313244
28	WCI K001314506
29	WCI K001313344
30	SPACER (2)
31	MOULDING OUTER GLASS
