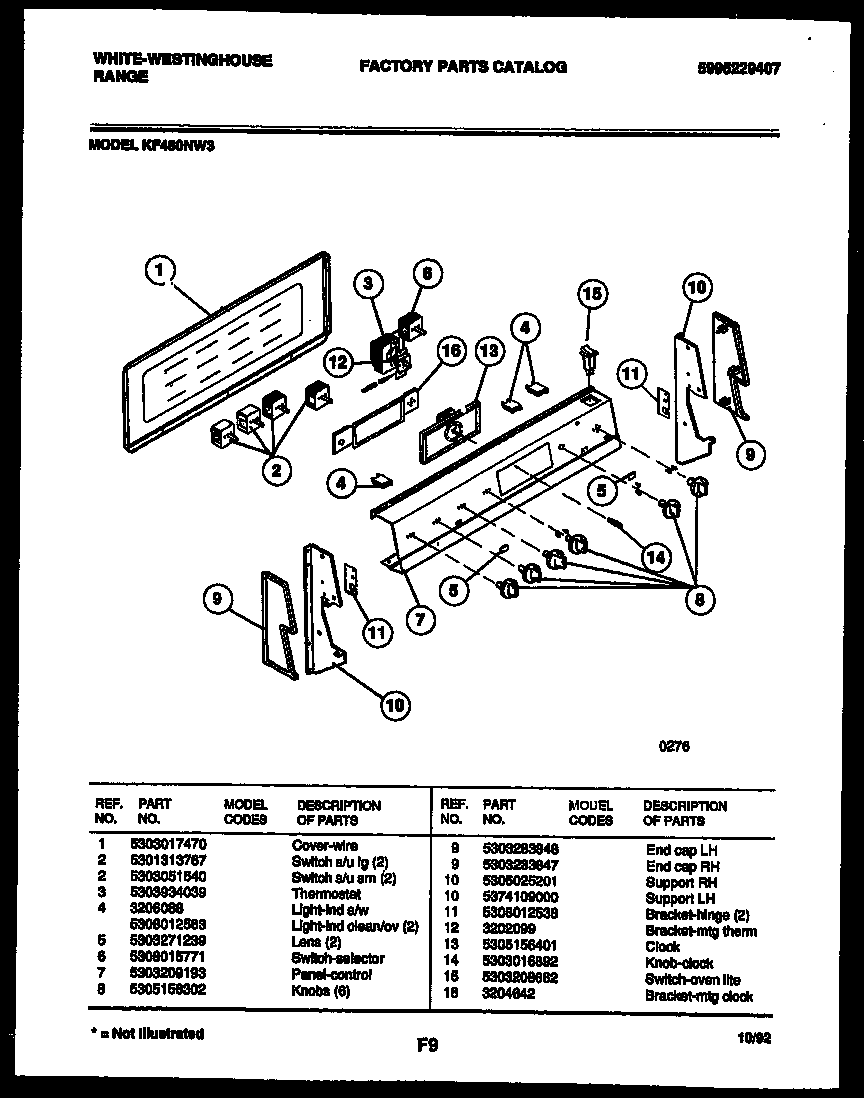

KF480NW3 02 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4A	LIGHT-PILOT OVEN & CLEAN
4	IND LITE SURF UNIT
5	LENS-LIGHT
6	WCI 5308015771
7	PANEL-CONTROL
8	KNOBS (6)
9	WCI 5303283848
9	WCI 5303283847
10	SUPPORT LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
12	BRACKET-THERMOSTAT
13	WCI 5305156401
14	WCI 5303016892
15	5308015487 Frigidaire Switch-Oven Light
16	BRACKET-MTG CLOCK
