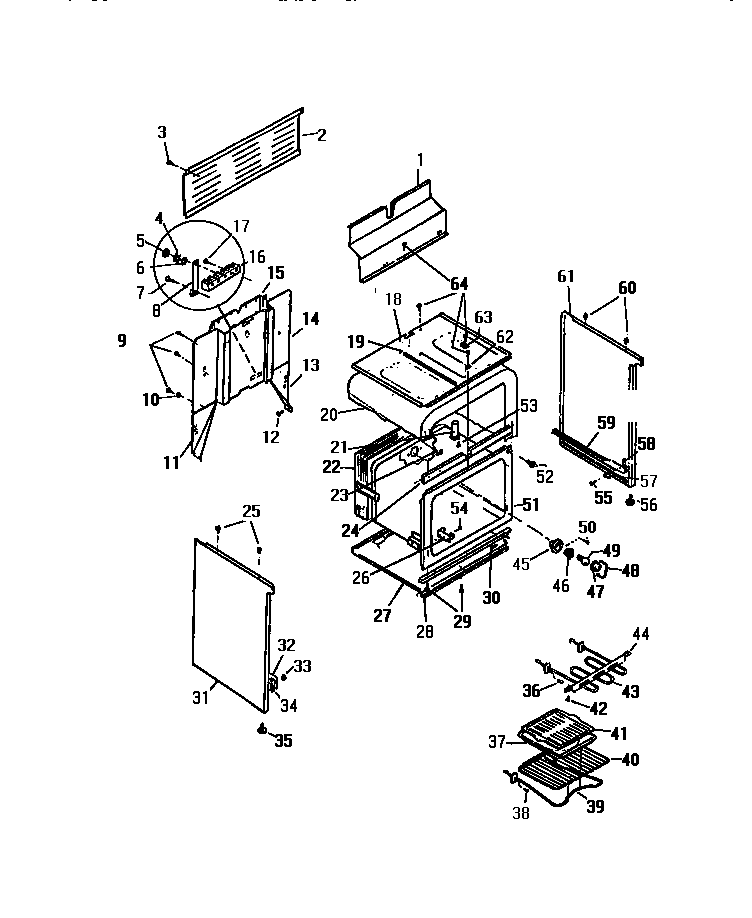

KF520GDD1 05 – BODY, SIDE PANELS

Products

Position	Product
1	WCI K5032101
2	COVER-WIRE
4	WCI Q500411
5	WCI Q401002
6	WASHER (6)
8	STRAP-GROUND
10	WCI Q410505
11	WCI K1325114
12	WCI K1184542
13	WCI K1325113
14	BACK
15	WCI K1315110
16	TERMINAL BLOCK
17	SCREW
18	WCI K5025802
19	ROD
20	INSULATION, WRAP
21	VENT TUBE
22	INSULATION, BACK
24	WCI K1325472
26	BRACKET THERM. BULB
27	WCI K1315107
28	CHANNEL, OV. SUPT.
30	WCI K1154479
31	END PANEL, LH, ALMOND
32	RAIL, DWR, LH
37	WCI K1317973
39	5303051519 Frigidaire Oven 2600W Bake Element
40	RACK (2)
41	WCI K1317972
43	5303051516 Frigidaire Broil Element
44	HANGER
45	CUP, OVEN LT
46	316116400 Frigidaire Oven Light Socket
47	WCI K1325628
48	RETAINING WIRE
49	WCI Q63749
51	WCI K1325537
52	SWITCH, OVEN LIGHT
53	SCREW
54	08002868 Frigidaire 0 Screw Assembly
55	SCREW
56	LEG
57	GUIDE
58	SPACER, RAIL
59	RAIL, DWR., RH
60	BUMPER
61	END PANEL, RH, ALMOND
62	WASHER, PADDED
63	RETAINER
