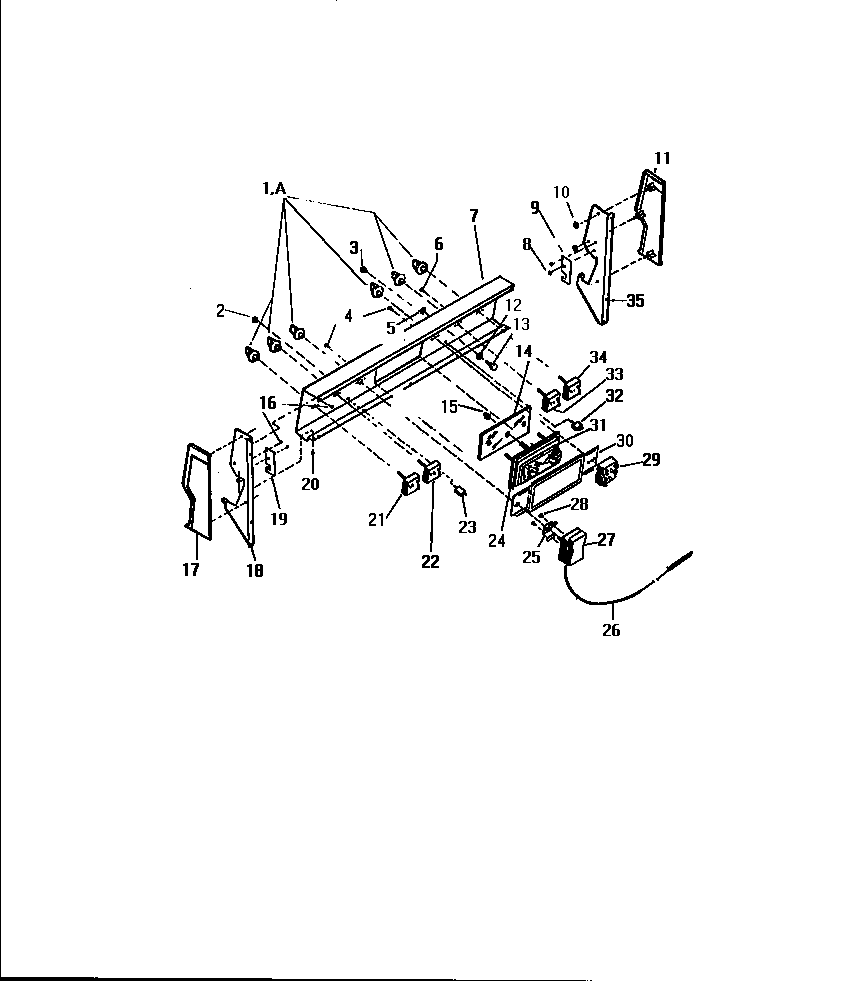

KF520GDF1 02 – BACKGUARD

Products

Position	Product
1A	KNOB (6)
3	LENS
5	WCI K5051701
6	SCREW
7	WCI K5030901
8	08002868 Frigidaire 0 Screw Assembly
10	NUT (3)
11	WCI K5030402
12	NUT – HEX – LAMP SW. (2)
13	WCI K5051801
14	WCI K1308105
15	KNOB, TIMER
17	WCI K5030401
18	WCI K5025201
19	WCI K5025001
20	WCI K1164566
23	LIGHT SIGNAL (OVEN 250V)
24	BEZEL
25	BRACKET
26	WCI K1306350
27	THERMOSTAT
28	SCREW
29	WCI K1311985
30	WCI K5296301
31	WCI K5036701
32	LIGHT,SIGNAL (SURFACE UNIT 125V)
34	5303935086 Frigidaire Oven Top Burner Switch Kit
35	WCI K5025202
