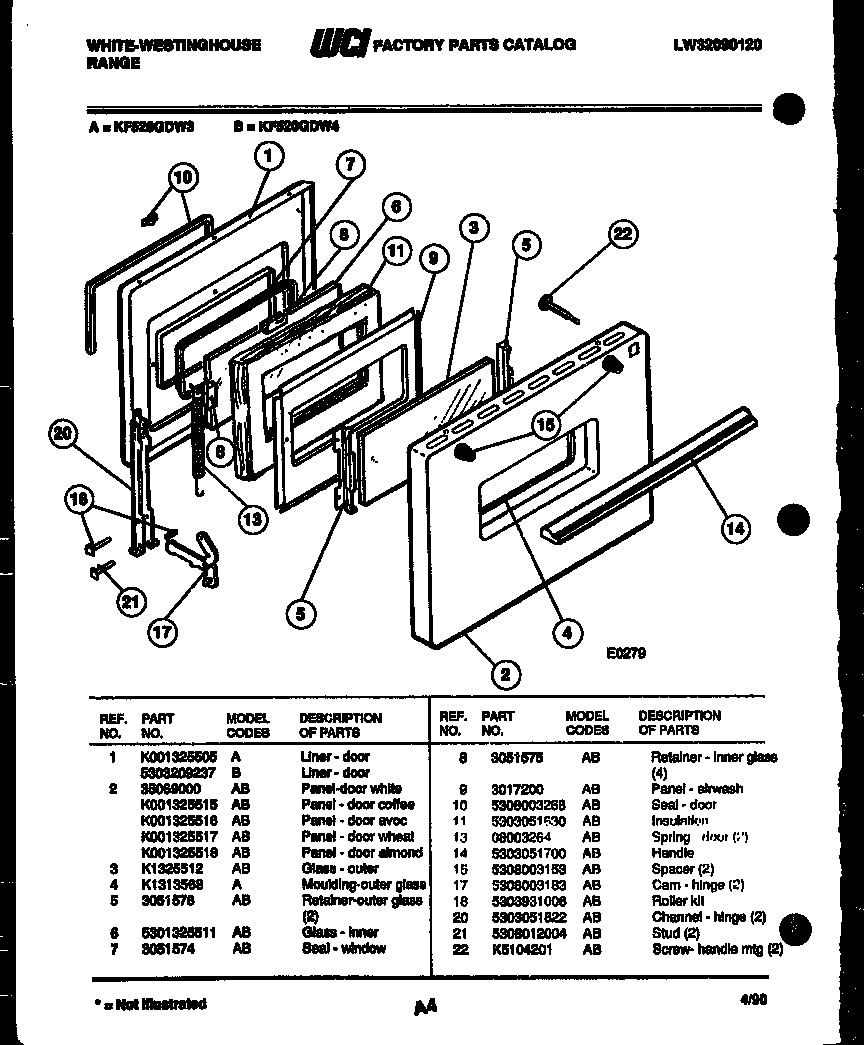

KF520GDF4 04 – DOOR PARTS

KF520GDF4 04 – DOOR PARTS

Written by

in

KF520GDF4 04 – DOOR PARTS

Products

Position	Product
1	WCI 5303209237
2	WCI K001325515
3	WCI K1325512
4	MOULDING OUTER GLASS
5	RETAINER – OTR GL (2)
6	GLASS INNER DOOR
7	SEAL WINDOW
8	RETAINER – GLASS (4)
9	WCI 3017200
10	GASKET-OVEN DOOR
11	INSULATION
13	WCI 08003264
14	HANDLE
15	SPACER (2)
17	DOOR HINGE ARM
18	CHANNEL, LH
20	CHANNEL (2)
21	AXLE – HINGE (2)
22	WCI K5104201
