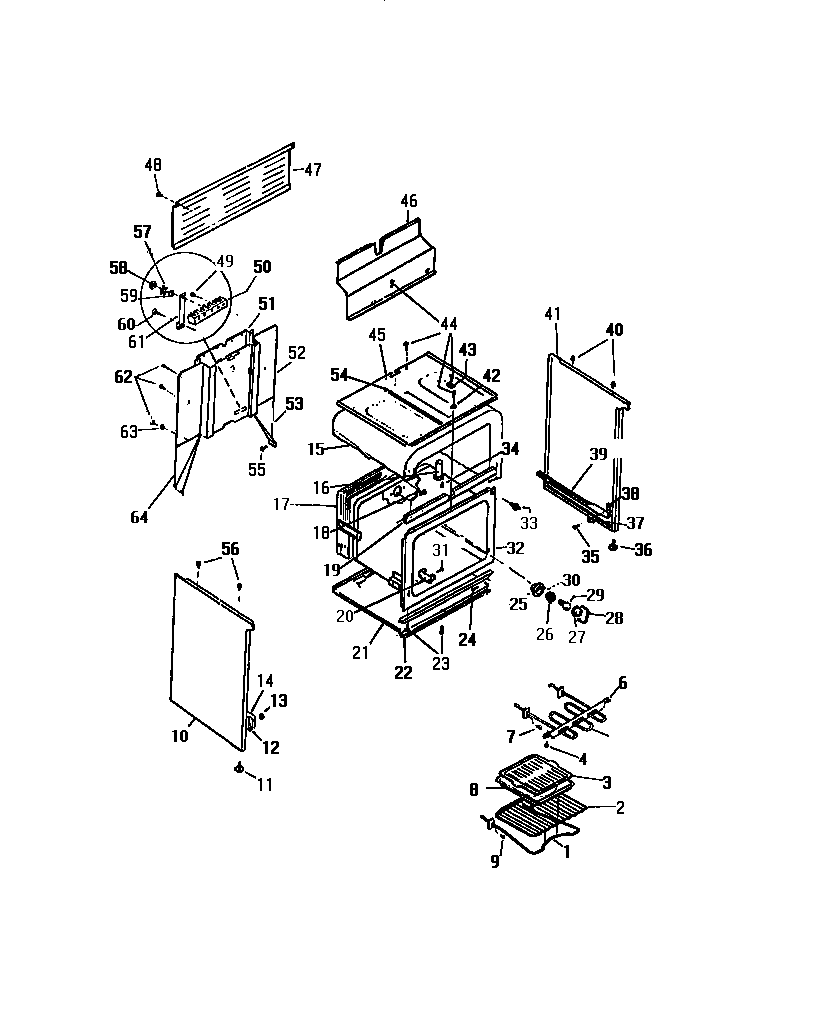

KF520GDH2 04 – BODY, SIDE PANELS

Products

Position	Product
1	5303051519 Frigidaire Oven 2600W Bake Element
2	RACK (2)
3	WCI K1317972
5	5303051516 Frigidaire Broil Element
6	HANGER
8	WCI K1317973
10	PANEL-END RH-WHEAT
14	RAIL, DWR, LH
15	INSULATION, WRAP
16	VENT TUBE
17	INSULATION, BACK
19	WCI K1325472
20	BRACKET THERM. BULB
21	PANEL, BTM
22	CHANNEL, OV. SUPT.
25	CUP, OVEN LT
26	316116400 Frigidaire Oven Light Socket
27	5304524341 Frigidaire Lens
28	RETAINING WIRE
29	WCI Q63749
31	08002868 Frigidaire 0 Screw Assembly
32	WCI K1325537
33	WCI K5294301
34	SCREW
35	SCREW
36	LEG
37	GUIDE
38	SPACER, RAIL
39	RAIL, DWR., RH
41	WCI K5024609
42	WASHER, PADDED
43	RETAINER
45	WCI K5025802
46	WCI K5029503
47	COVER-WIRE
49	SCREW
50	TERMINAL BLOCK
51	COVER, WIRE
52	BACK
53	GUSSET, RH
54	ROD
56	BUMPER
57	WCI Q500411
58	WCI Q401002
59	WASHER (6)
61	STRAP-GROUND
63	WCI Q410505
64	GUSSET REAR, LH
