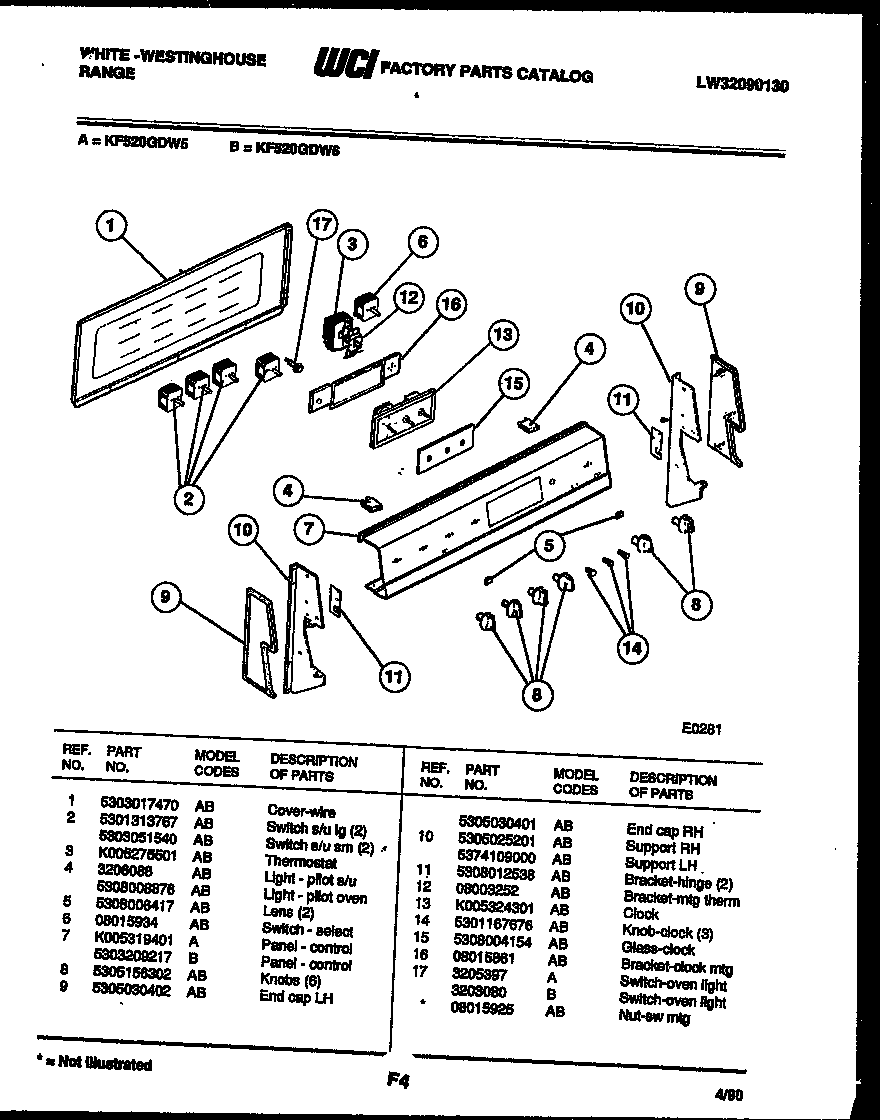

KF520GDH5 02 – CONTROL PANEL

Products

Position	Product
*29569	WCI 08015925
1	COVER, WIRE.
2	5303935086 Frigidaire Oven Top Burner Switch Kit
3	WCI K005275501
4	IND LITE SURF UNIT
4A	INDICATOR LIGHT, OVEN
5	LENS (2)
6	WCI 08015934
7	WCI K005319401
8	KNOBS (6)
9	WCI 5305030402
9A	WCI 5305030401
10A	SUPPORT LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
12	WCI 08003252
13	WCI K005324301
14	WCI 5301167676
15	WCI 5308004154
16	BRACKET-MTG CLOCK
17	WCI 3205397
