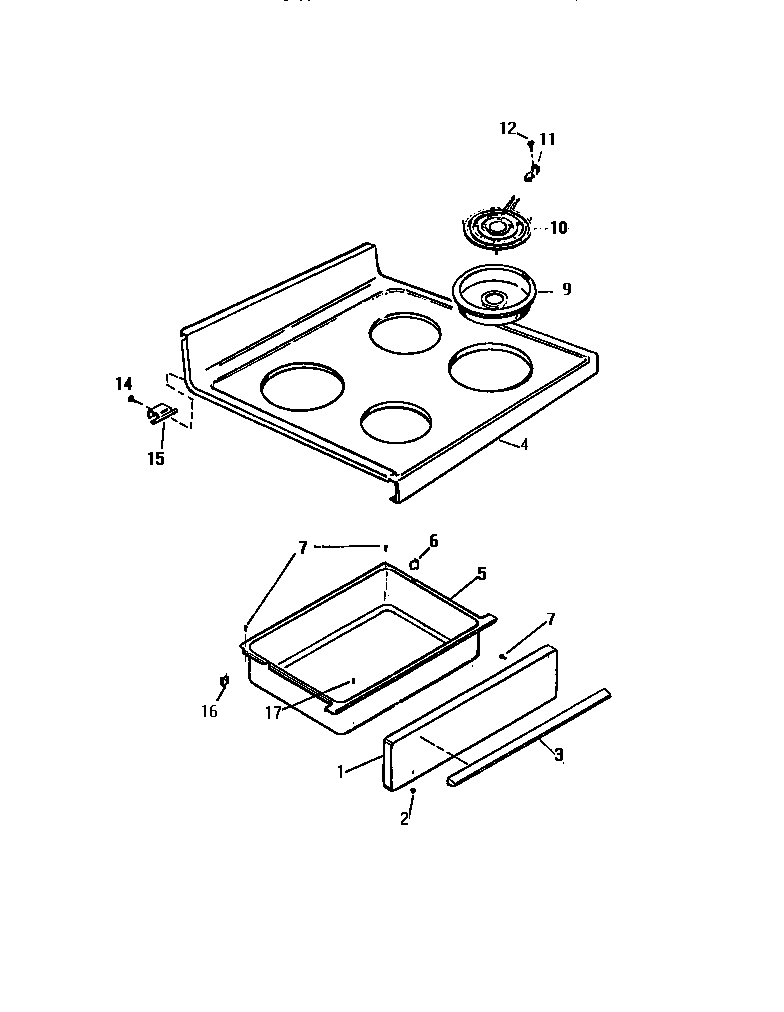

KF520GDV2 03 – TOP/DRAWER

KF520GDV2 03 – TOP/DRAWER

Written by

in

KF520GDV2 03 – TOP/DRAWER

Products

PositionProduct
1WCI K1325098
25303013272 Frigidaire Oven Nut
3HANDLE
4WCI K5024213
5DRAWER
9A316048413 Frigidaire Oven Range Chrome 8" Drip Bow
9316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
10318372211 Frigidaire Oven 6" Electric Range Burner Kit
10A316442301 Frigidaire Oven 8 Coil Element 2600W
115303935058 Frigidaire Oven Burner Receptacle Kit
125308014215 Frigidaire Oven Screw
1408002868 Frigidaire 0 Screw Assembly
15WCI K5024901
16GUIDE
17SCREW
