KF520GDV2 05 – DOOR

KF520GDV2 05 – DOOR

Written by

in

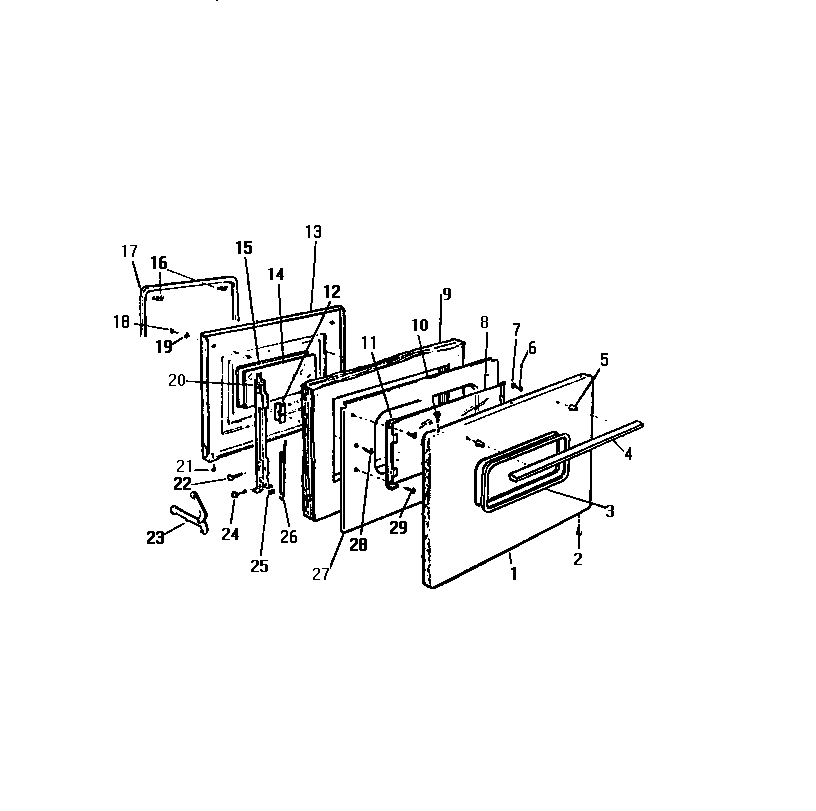

KF520GDV2 05 – DOOR

Products

Position	Product
1	WCI K1325516
2	WCI K1164560
3	MOULDING OUTER GLASS
4	HANDLE
5	SPACER (2)
6	WCI Q410505
7	WCI K5104201
8	WCI K1325512
9	WCI K1325629
11	WCI K1325270
12	WCI K1325510
13	WCI K1325505
14	GLASS – INNER DOOR
15	WCI K1325686
16	WCI K1309666
17	GASKET (WITH CLIPS)
19	WASHER, PADDED
20	WCI K1311614
22	RIVET
23	ARM ASSY.
24	AXLE
25	ROLLER PACKAGE-OVEN DOOR (2)
26	SPRING
27	WCI K1325509
28	WCI K1164550
29	08002868 Frigidaire 0 Screw Assembly
