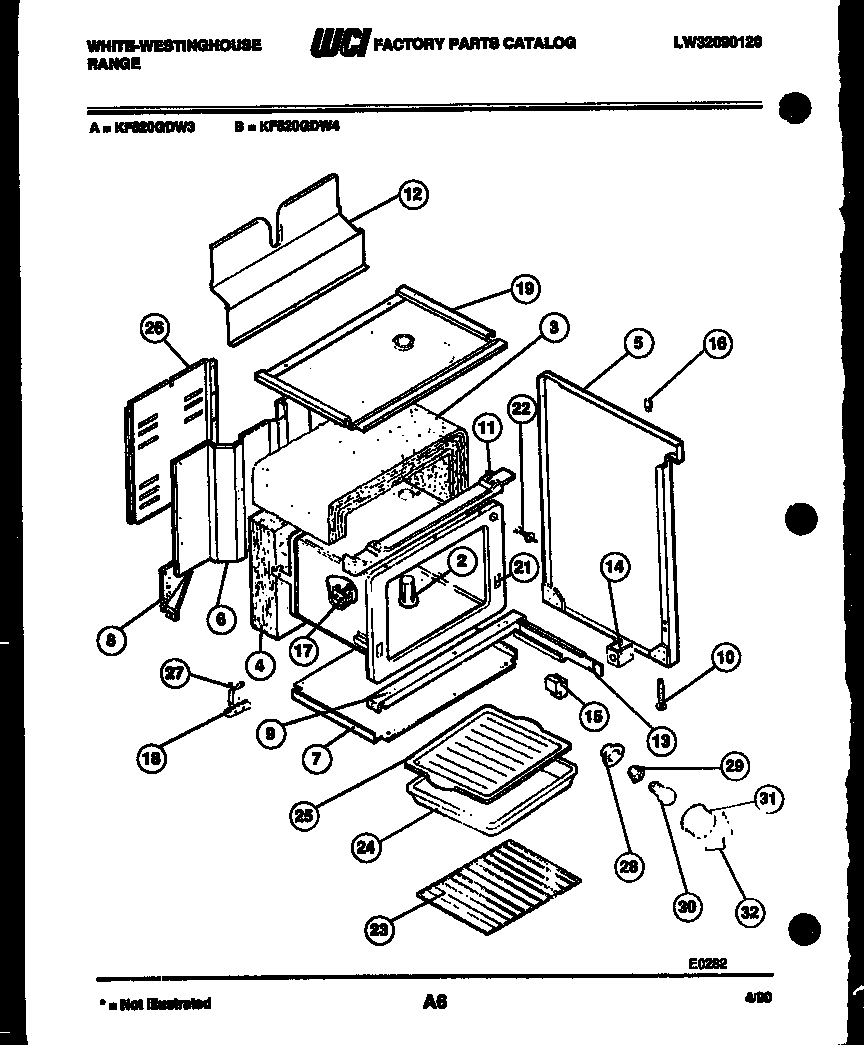

KF520GDV3 06 – BODY PARTS

Products

Position	Product
2	WCI 08012541
3	INSULATION - OVEN WRAP
4	INSULATION
5A	PANEL-END LH AVOC
5	PANEL-END RH AVOC
6	GUSSET-REAR RH
7	WCI K005276504
8A	GUSSET - REAR (2)
9	CHANNEL-OVEN SUPT
10	SCREW-LEVELING (4)
11	WCI 08011072
12	WCI K005029503
13A	RAIL, DRAWER LH
13	WCI 5308015746
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER, COOKTOP (4)
17	BRACKET-THERMO BULB (2)
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
21	WCI 3204607
22	WCI 5301314211
23	316067902 Frigidaire Oven Rack
24	WCI 3200723
25	WCI 3203164
26	WIRE, COVER
27	STRAP-GROUND
28	WCI 3051511
29	316116400 Frigidaire Oven Light Socket
30	5303934089 Frigidaire Oven Clock
31	5304524341 Frigidaire Lens
32	RETAINER-LENS
