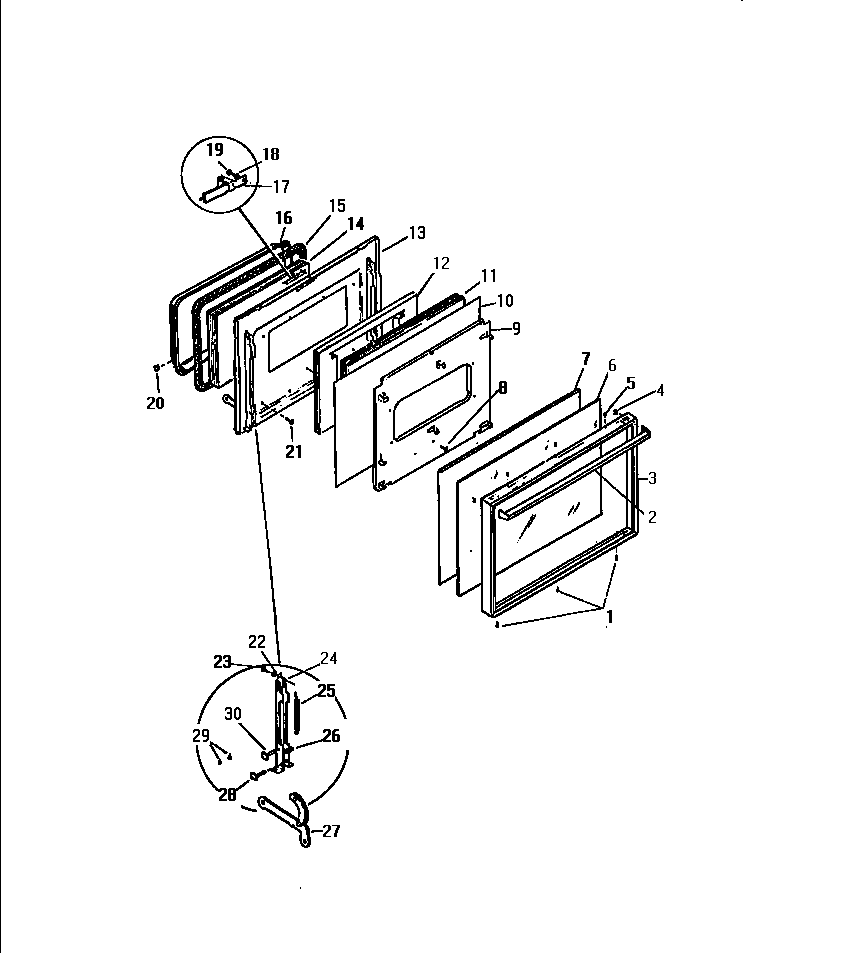

KF560GDD0 04 – DOOR

Products

Position	Product
2	HANDLE ASSY (INCLUDES STANCHION)
3	WCI K5027101
4	SCREW
6	GLASS
7	WCI K5030801
8	WCI K1164557
9	WCI K1323173
10	WCI K1313020
11	WCI K1322652
12	WCI K1322651
13	WCI K1324721
14	WCI K1322622
15	GASKET
16	WCI K1322616
17	STRIKE ASSEMBLY
20	WCI KGM142001
21	08002868 Frigidaire 0 Screw Assembly
22	WASHER, PADDED
24	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
25	WCI K1302501
26	ROLLER PACKAGE-OVEN DOOR (2)
27	ARM ASSY.
28	AXLE
29	WCI K1164550
30	RIVET
