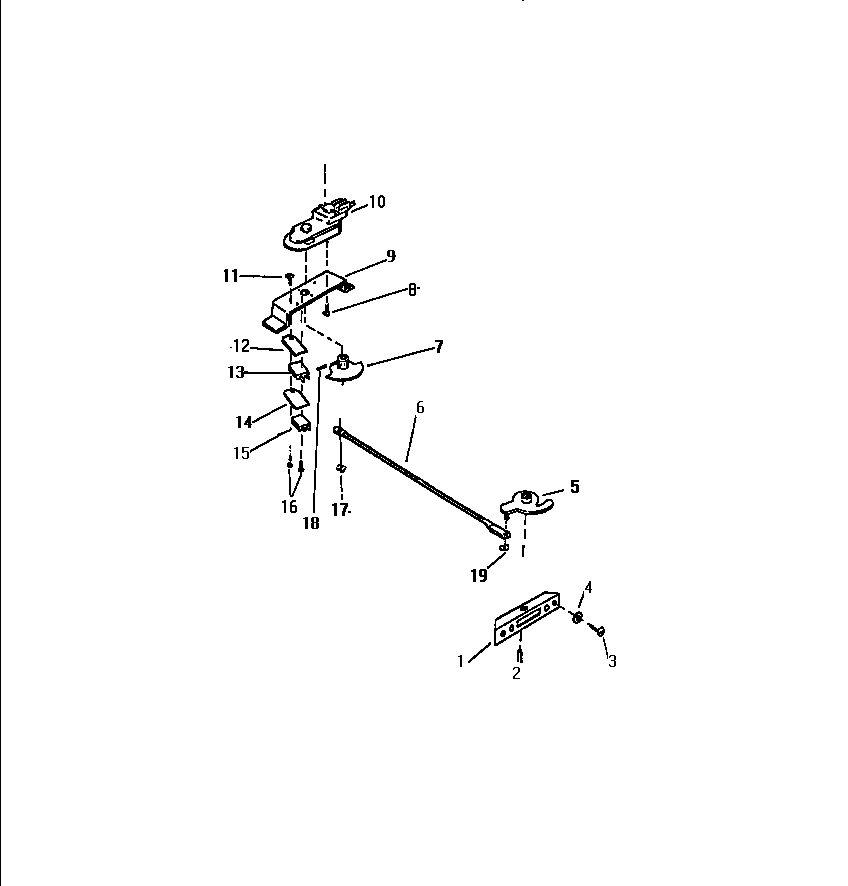

KF560GDD0 05 – DOOR LATCH ASSEMBLY

Products

Position	Product
1	HOUSING, DOOR LATCH
2	AXLE
3	WCI K1164550
4	WASHER, PADDED
5	WCI K5260201
6	WCI K1317813
7	WCI K1325071
8	WCI K5157101
9	WCI K1324263
10	WCI K1318885
11	08002868 Frigidaire 0 Screw Assembly
13	SWITCH-LOWER
14	INSULATOR
15	WCI K1167190
16	WCI K1164502
18	WCI KGM455105
19	WCI K1164424
