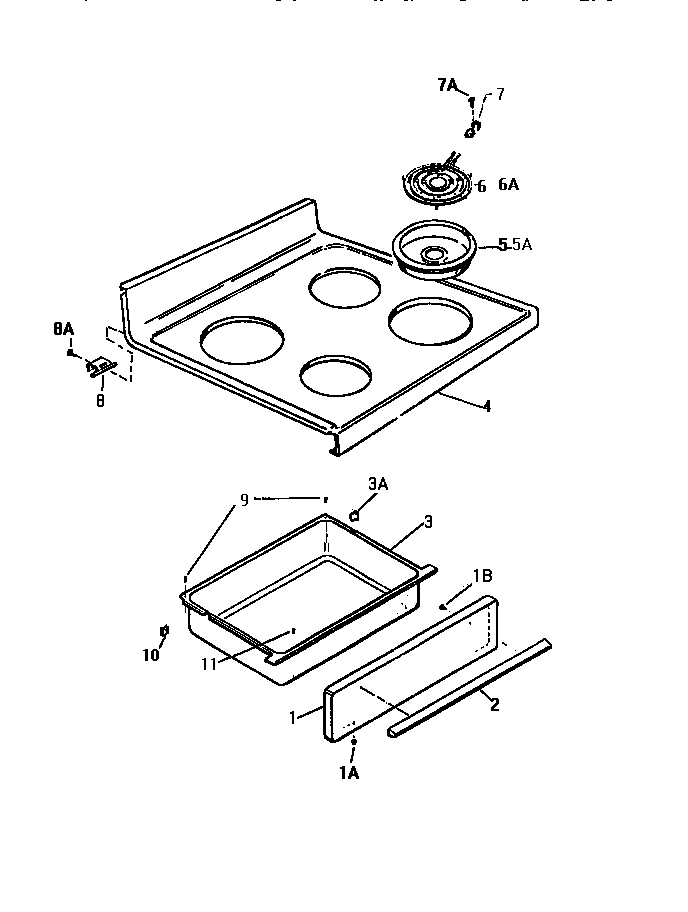

KF560GDD3 03 – TOP, DRAWER

Products

Position	Product
1	PANEL DRAWER, ALMOND
1A	5303013272 Frigidaire Oven Nut
2	HANDLE
3	DRAWER
4	WCI K5021215
5A	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
6	318372211 Frigidaire Oven 6" Electric Range Burner Kit
6A	316442301 Frigidaire Oven 8 Coil Element 2600W
7A	5308014215 Frigidaire Oven Screw
7	5303935058 Frigidaire Oven Burner Receptacle Kit
8A	08002868 Frigidaire 0 Screw Assembly
8	WCI K5024901
10	GUIDE
11	SCREW
