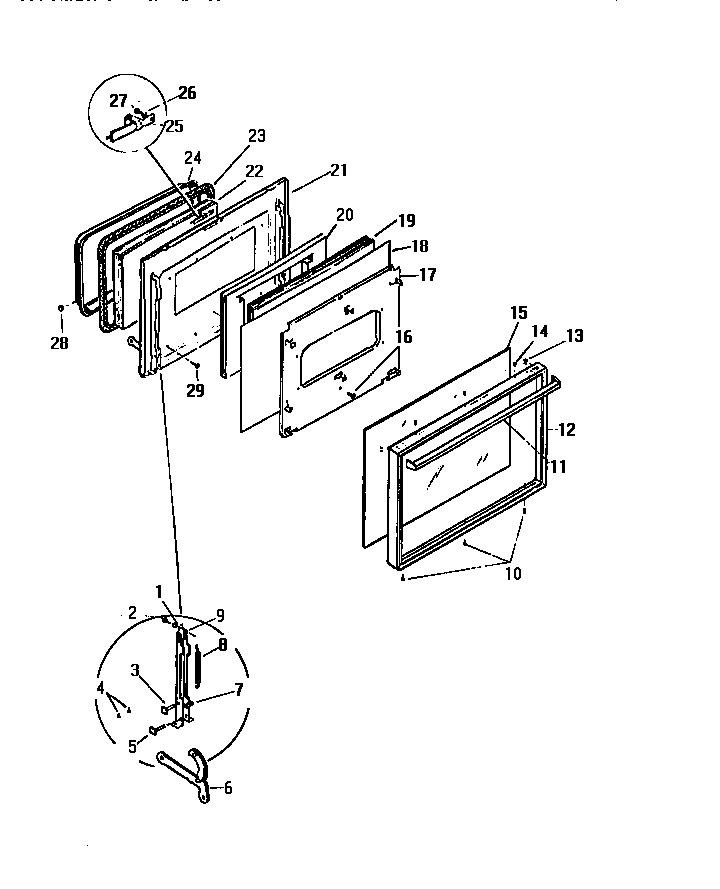

KF560GDD3 04 – DOOR

Products

Position	Product
3	RIVET
5	AXLE
6	ARM ASSY.
7	ROLLER PACKAGE-OVEN DOOR (2)
8	WCI K1302501
9	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
11	HANDLE ASSY (INCLUDES STANCHION)
12	FRAME – CHROME OVEN DOOR
13	SCREW
15	GLASS
16	WCI K1164557
17	WCI K5276901
18	WCI K1313020
19	WCI K1322652
20	WCI K1322651
21	WCI K1324721
22	WCI K1322622
23	GASKET
24	WCI K1322616
25	STRIKE ASSEMBLY
26	WASHER, PADDED
27	WCI K1164550
28	WCI KGM142001
29	08002868 Frigidaire 0 Screw Assembly
