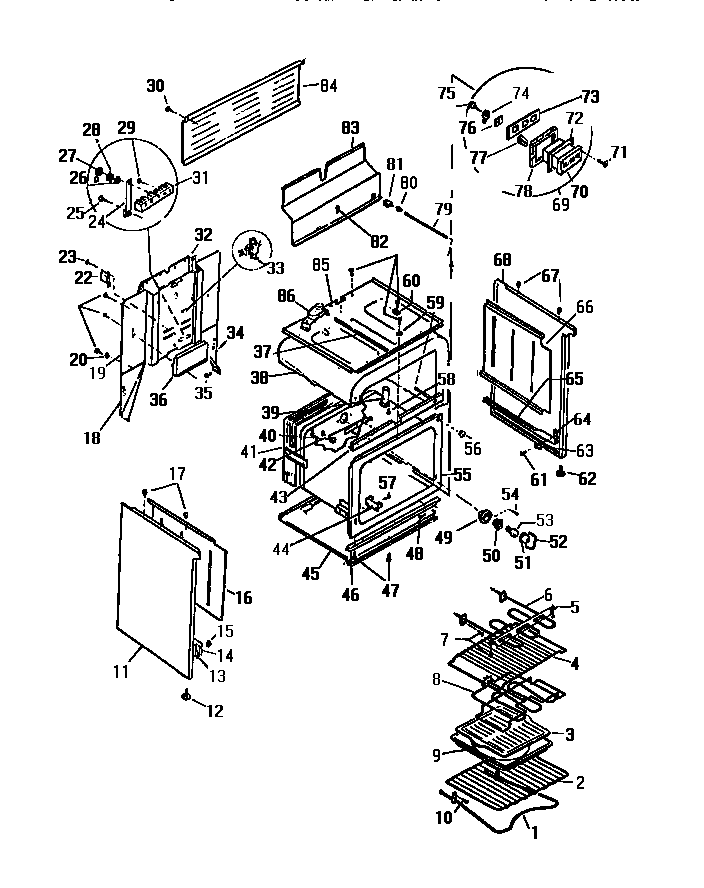

KF560GDD3 06 – BODY, SIDE PANELS

Products

Position	Product
1	5303051519 Frigidaire Oven 2600W Bake Element
2	RACK (2)
3	WCI K1317972
4	WCI K5133401
5	HANGER
6	5303051516 Frigidaire Broil Element
8	WCI K1313230
9	WCI K1317973
11	END PANEL, LH, ALMOND
14	RAIL, DWR, LH
18	GUSSET REAR, LH
19	WCI K5275904
20	WCI Q410505
22	WCI K5290501
24	STRAP-GROUND
26	WASHER (6)
27	WCI Q401002
28	WCI Q500411
31	TERMINAL BLOCK
32	COVER, WIRE
33	WCI K5328001
34	GUSSET, RH
36	WCI K5134501
37	ROD
38	WCI K1311331
39	VENT TUBE
40	WCI KGM142017
41	INSULATION-OVEN BACK
43	CHANNEL, OVEN SUPPORT
44	BRACKET THERM. BULB
45	WCI K5276502
46	CHANNEL, OV. SUPT.
49	CUP, OVEN LT
50	316116400 Frigidaire Oven Light Socket
51	5304524341 Frigidaire Lens
52	RETAINING WIRE
53	WCI Q63749
55	WCI K5024701
56	PLUG-BUTTON 3/4``
57	08002868 Frigidaire 0 Screw Assembly
58	SCREW
59	WASHER, PADDED
60	RETAINER
61	SCREW
62	LEG
63	GUIDE
64	SPACER, RAIL
65	RAIL, DWR., RH
66	RETAINER-INSUL (2)
67	BUMPER
68	END PANEL, RH, ALMOND
69	WCI Q160978
70	BLOCK
71	SCREW
72	WCI Q22652
73	WCI Q291142
74	WCI Q81559
75	WCI Q414002
76	WCI Q273020
77	WCI Q62643
78	WCI Q208505
79	PUSH ROD
80	WCI K1322682
81	WCI K5328101
83	WCI K5029505
84	COVER-WIRE
85	WCI K5025802
86	WCI 000000
