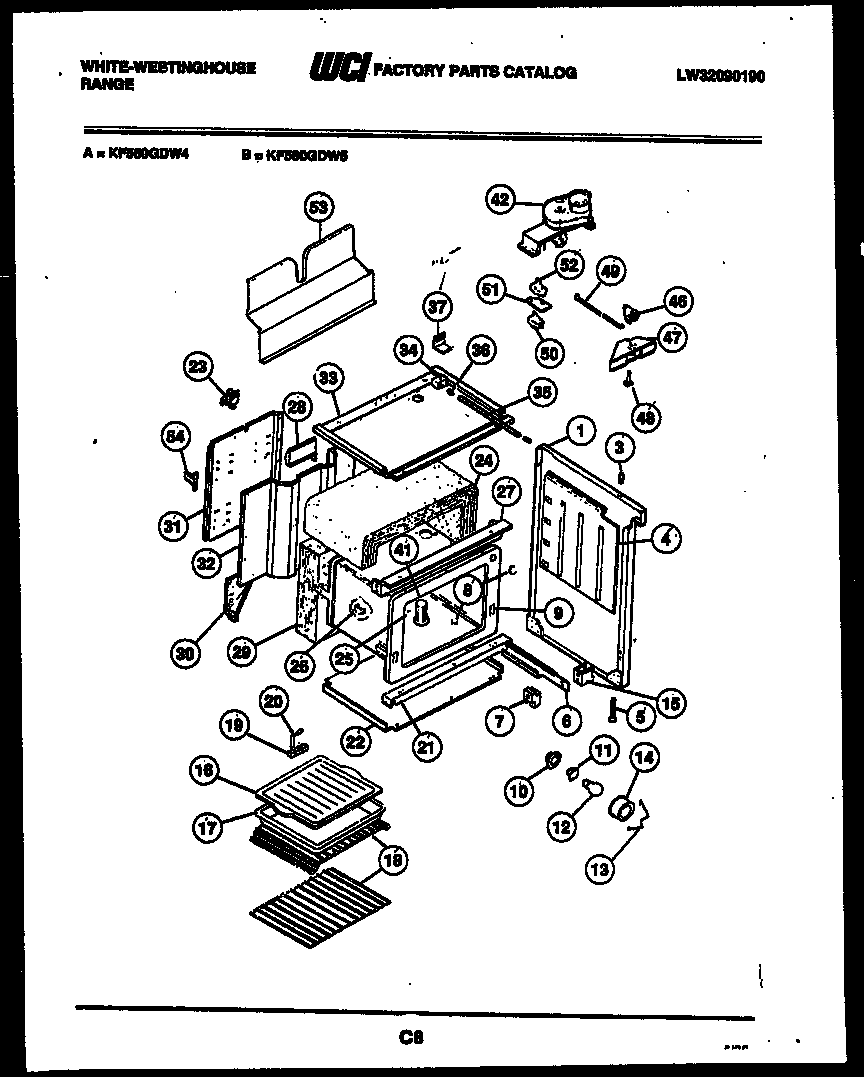

KF560GDD5 07 – BODY PARTS

KF560GDD5 07 – BODY PARTS

Written by

in

KF560GDD5 07 – BODY PARTS

Products

PositionProduct
*72285WCI Q000160978
*72285ANTI-TIP KIT, (NON-ILLUSTRATED)
1SIDE PANEL RH-ALMD
1ASIDE PANEL LH-ALMD
3BUMPER, COOKTOP (4)
4RETAINER, INSULATION (2)
5LEG, LEVELLER (4)
6ARAIL, DRAWER LH
6WCI 5308015746
7GUIDE-DRAWER FRNT (2)
8BUTTON-PLUG
9WCI 3204605
10WCI 3051511
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINER-LENS
145304524341 Frigidaire Lens
15SPACER, DRAWER RAIL (2)
16WCI 3205234
17WCI 3206373
17WCI 3200723
18ARACK-OVEN OFFSET
18316067902 Frigidaire Oven Rack
195304409888 Frigidaire Oven Terminal Block with Hardware
20STRAP-GROUND
21CHANNEL – OVEN SUPPORT LOWER
22WCI 3206275
23WCI K005328001
25PLUG BUTTON – THERMO BULB HOLE
26BRKT – THERMO BULB
27CHANNEL-OVEN SUPPORT UPPER
28WCI 3051634
29INSULATION
30WCI 3017481
30AWCI 3017482
31WIRE, COVER
32WCI 3017480
33WCI 08012542
33AWASHER-PADDED (3) (NON-ILLUSTRATED)
34WCI 3017799
35WCI 08007445
36WCI 08007444
37BRACKET-LIGHT SWITCH
41TUBE-OVEN VENT
42LATCH, MOTOR
46WCI 3202387
47HOUSING-DOOR LATCH
48AXLE – HINGE (2)
49WCI 3051649
50WCI K001315370
51WCI 08003090
52SWITCH – UPPER
53WCI 5303209282
54BALLAST-LAMP (NON-ILLUSTRATED)
