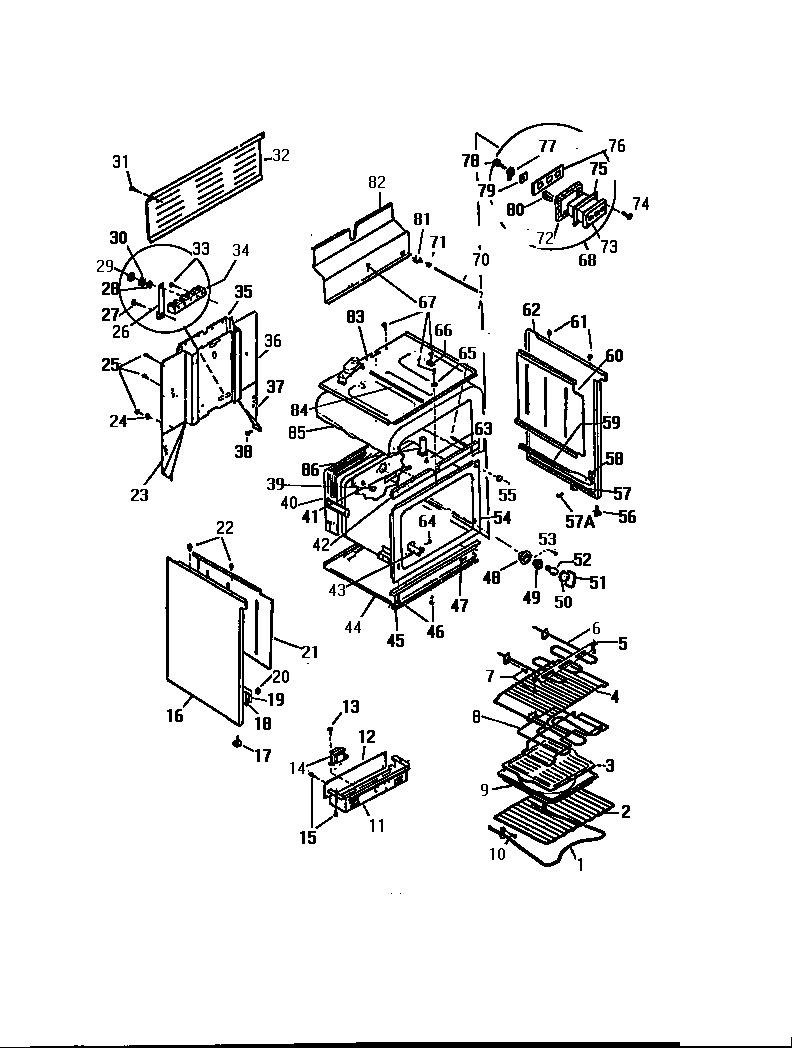

KF560GDF0 06 – BODY, SIDE PANELS

Products

Position	Product
1	5303051519 Frigidaire Oven 2600W Bake Element
2	RACK (2)
3	WCI K1317972
4	WCI K5133401
5	HANGER
6	5303051516 Frigidaire Broil Element
8	WCI K1313230
9	WCI K1317973
11	WCI K1315121
12	WCI K1303601
13	WCI K1164563
14	WCI Q52613
16	WCI K5024606
19	RAIL, DWR, LH
23	WCI K1325114
24	WCI Q410505
26	STRAP-GROUND
28	WASHER (6)
29	WCI Q401002
30	WCI Q500411
32	COVER-WIRE
34	TERMINAL BLOCK
35	WCI K1315110
36	WCI K1317817
37	WCI K1325113
39	WCI KGM142017
40	INSULATION-OVEN BACK
42	WCI K13253561
43	BRACKET THERM. BULB
44	WCI K1317644
45	CHANNEL, OV. SUPT.
48	CUP, OVEN LT
49	316116400 Frigidaire Oven Light Socket
50	5304524341 Frigidaire Lens
51	RETAINING WIRE
52	WCI Q63749
54	WCI K5024701
55	PLUG-BUTTON 3/4``
56	LEG
57A	SCREW
57	GUIDE
58	SPACER, RAIL
59	RAIL, DWR., RH
60	RETAINER-INSUL (2)
61	BUMPER
62	WCI K5024605
63	SCREW
64	08002868 Frigidaire 0 Screw Assembly
65	WASHER, PADDED
66	RETAINER
68	WCI Q160978
70	PUSH ROD
71	WCI K1322682
72	WCI Q208505
73	BLOCK
74	SCREW
75	WCI Q22652
76	WCI Q291142
77	WCI Q81559
78	WCI Q414002
79	WCI Q273020
80	WCI Q62643
81	SWITCH-DOOR
82	WCI K5032101
83	WCI K5025802
84	ROD
85	WCI K1311331
86	VENT TUBE
