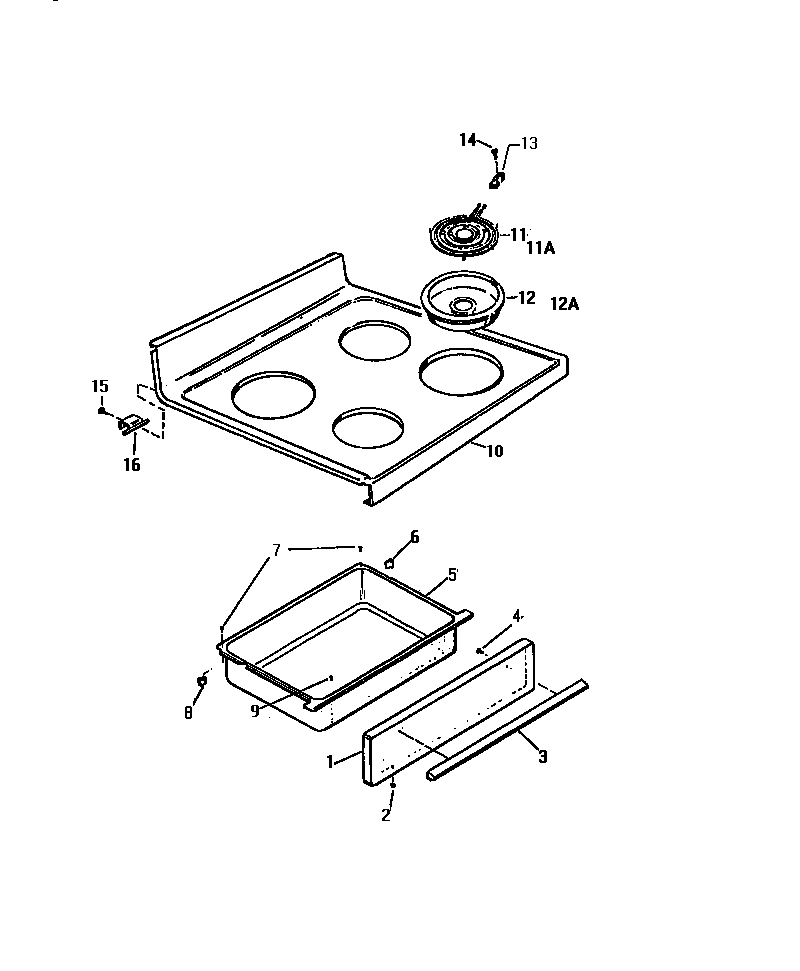

KF560GDF1 03 – TOP & DRAWER

KF560GDF1 03 – TOP & DRAWER

Written by

in

KF560GDF1 03 – TOP & DRAWER

Products

PositionProduct
1WCI K1325097
25303013272 Frigidaire Oven Nut
3HANDLE
5DRAWER
8GUIDE
9SCREW
10PLATEFORM FR. AV.
11A316442301 Frigidaire Oven 8 Coil Element 2600W
11318372211 Frigidaire Oven 6" Electric Range Burner Kit
12A316048413 Frigidaire Oven Range Chrome 8" Drip Bow
12316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
135303935058 Frigidaire Oven Burner Receptacle Kit
145308014215 Frigidaire Oven Screw
1508002868 Frigidaire 0 Screw Assembly
16WCI K5024901
