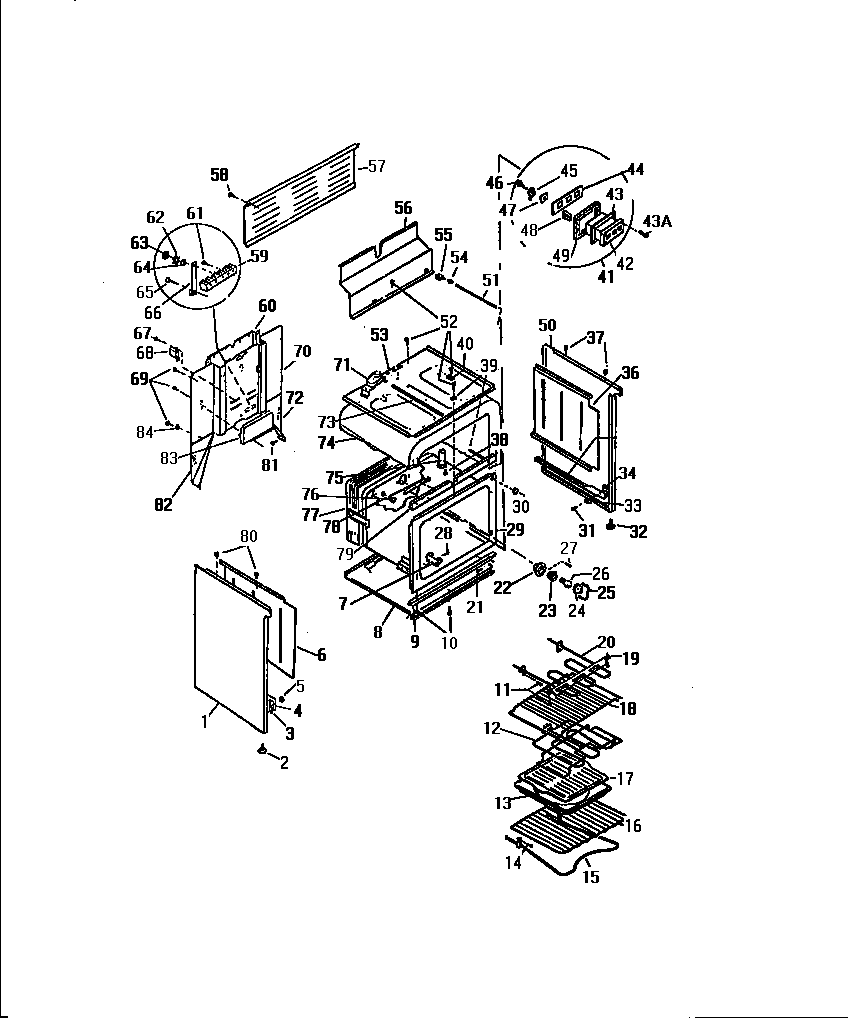

KF560GDF2 06 – BODY, SIDE PANELS

Products

Position	Product
1	WCI K5024606
4	RAIL, DWR, LH
7	BRACKET THERM. BULB
8	WCI K5276502
9	CHANNEL, OV. SUPT.
12	WCI K1313230
13	WCI K1317973
15	WCI K1312553
16	RACK (2)
17	WCI K1317972
18	WCI K5133401
19	HANGER
20	5303051516 Frigidaire Broil Element
22	CUP, OVEN LT
23	316116400 Frigidaire Oven Light Socket
24	5304524341 Frigidaire Lens
25	RETAINING WIRE
26	WCI Q63749
28	08002868 Frigidaire 0 Screw Assembly
29	WCI K5024701
30	PLUG-BUTTON 3/4“
31	SCREW
32	LEG
33	GUIDE
34	SPACER, RAIL
35	RAIL, DWR., RH
36	RETAINER-INSUL (2)
38	SCREW
39	WASHER, PADDED
40	RETAINER
41	WCI Q160978
42	BLOCK
43	WCI Q22652
44	WCI Q291142
45	WCI Q81559
46	WCI Q414002
47	WCI Q273020
48	WCI Q62643
49	WCI Q208505
50	WCI K5024605
51	PUSH ROD
53	WCI K5025802
54	WCI K1322682
55	SWITCH-DOOR
56	WCI K5029503
57	COVER-WIRE
59	TERMINAL BLOCK
60	COVER, WIRE
61	SCREW
62	WCI Q500411
63	WCI Q401002
64	WASHER (6)
66	STRAP-GROUND
68	WCI K5290501
70	WCI K5275902
71	WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
72	WCI K1325113
73	ROD
74	WCI K1311331
75	VENT TUBE
76	WCI KGM142017
77	INSULATION-OVEN BACK
79	CHANNEL, OVEN SUPPORT
80	BUMPER
81	WCI K1154542
82	WCI K1325114
83	WCI K5134501
84	WCI Q410505
