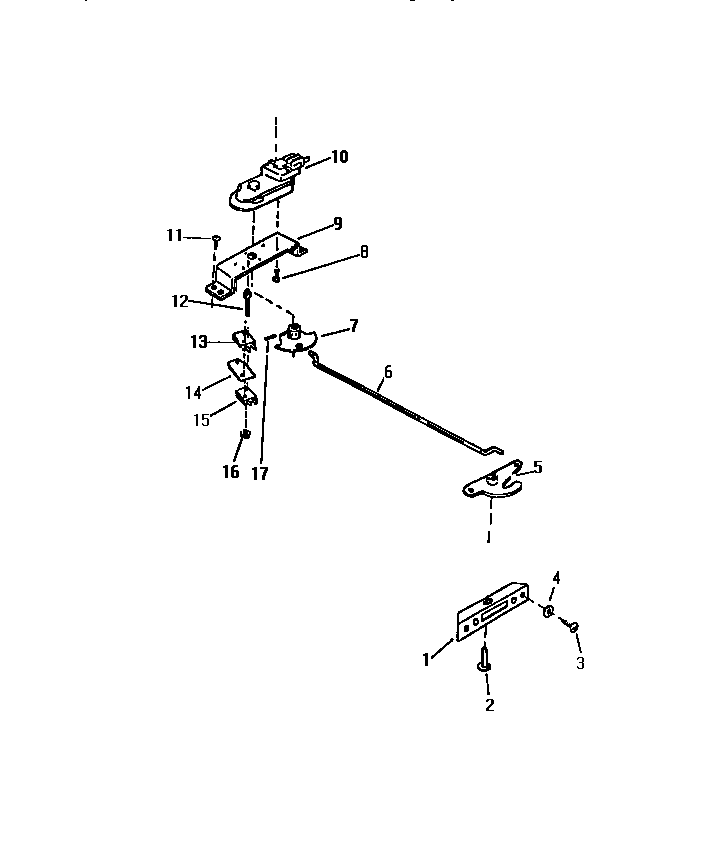

KF560GDF3 05 – DOOR LATCH ASSEMBLY

Products

Position	Product
1	HOUSING, DOOR LATCH
2	AXLE
3	WCI K1164550
4	WASHER, PADDED
5	WCI K5260202
6	WCI K5271201
7	WCI K5151605
8	WCI K5151604
9	SUPPORT
10	WCI K5151603
11	08002868 Frigidaire 0 Screw Assembly
12	WCI K5151610
13	SWITCH-LOWER
14	INSULATOR
15	WCI K1167190
16	5303013272 Frigidaire Oven Nut
17	WCI K5151606
