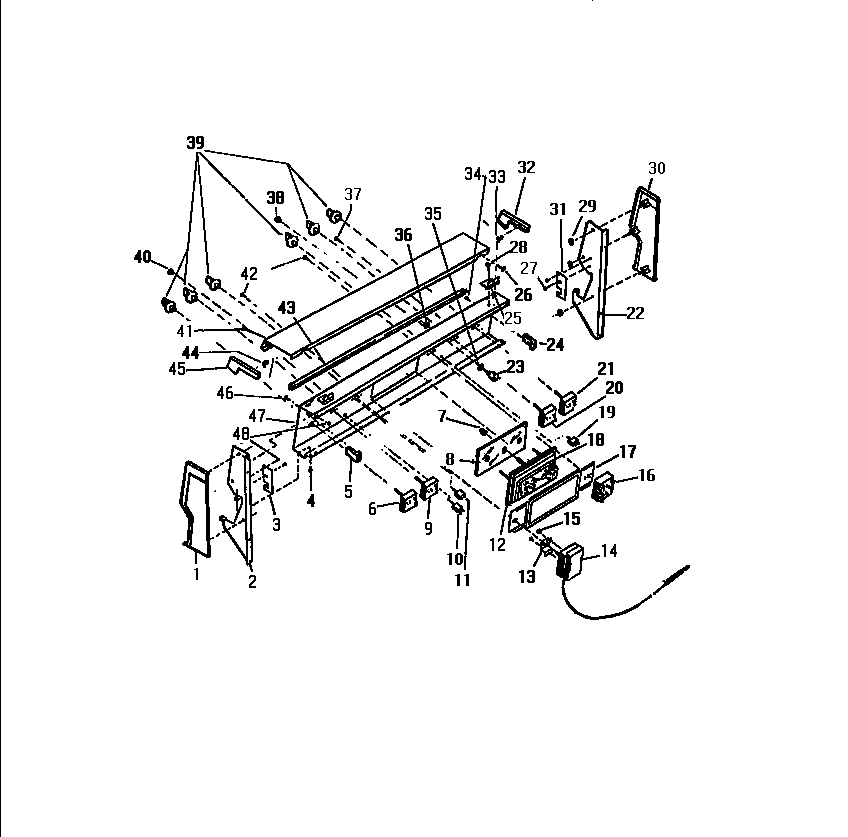

KF560GDH0 02 – BACKGUARD

Products

Position	Product
*07122	WCI K5044102
*07120	WCI K5044001
*07121	WCI K5044101
1	WCI K5030401
2	WCI K5025201
4	WCI K1164566
7	KNOB, TIMER
8	WCI K1167678
10	LIGHT SIGNAL (OVEN 250V)
11	LIGHT, SIGNAL (CLEAN & OVEN 250V.)
12	BEZEL
13	WCI K5267103
14	WCI K1324562
15	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
16	WCI K5067801
17	WCI K5296301
18	WCI K5033001
19	LIGHT,SIGNAL (SURFACE UNIT 125V)
21	5303935086 Frigidaire Oven Top Burner Switch Kit
22	WCI K5025202
23	WCI K5057501
24	WCI K5046401
25	WCI K5297501
26	5308014215 Frigidaire Oven Screw
27	08002868 Frigidaire 0 Screw Assembly
28	WCI K1164550
29	NUT (3)
30	WCI K5030402
31	WCI K5025001
32	WCI K5033502
35	WCI Q501442
36	WCI Q501444
39	WCI K5026901
40	LENS
41	WCI K5030702
42	SCREW
43	WCI K1313090
44	WCI K5033301
45	WCI K5033501
46	SCREW
47	WCI K5031402
