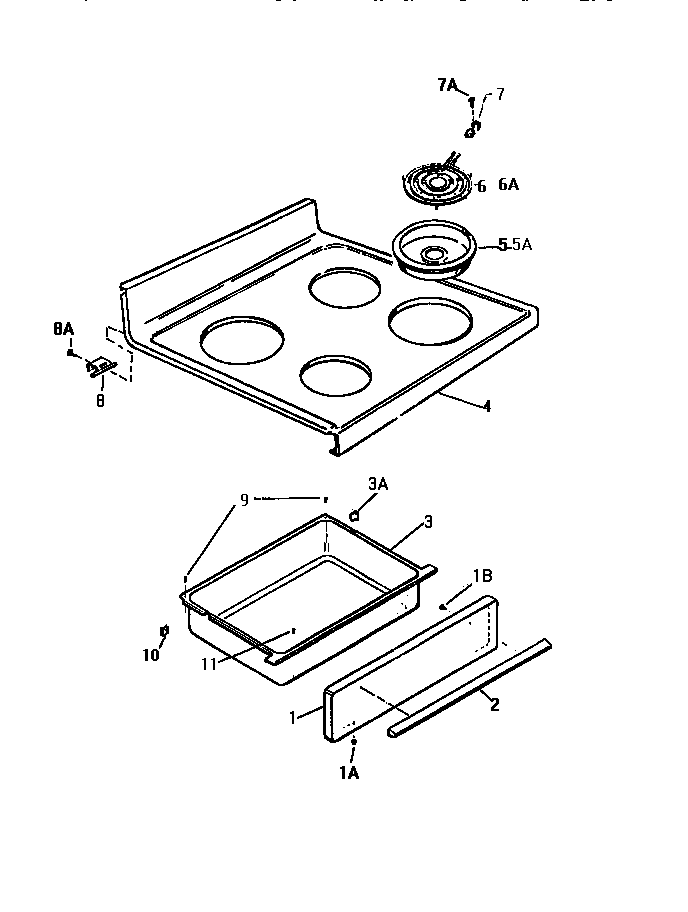

KF560GDH3 03 – TOP, DRAWER

KF560GDH3 03 – TOP, DRAWER

Written by

in

KF560GDH3 03 – TOP, DRAWER

Products

PositionProduct
1WCI K1325099
1A5303013272 Frigidaire Oven Nut
2HANDLE
3DRAWER
4WCI K5024214
5A316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
6318372211 Frigidaire Oven 6" Electric Range Burner Kit
6A316442301 Frigidaire Oven 8 Coil Element 2600W
7A5308014215 Frigidaire Oven Screw
75303935058 Frigidaire Oven Burner Receptacle Kit
8A08002868 Frigidaire 0 Screw Assembly
8WCI K5024901
10GUIDE
11SCREW
