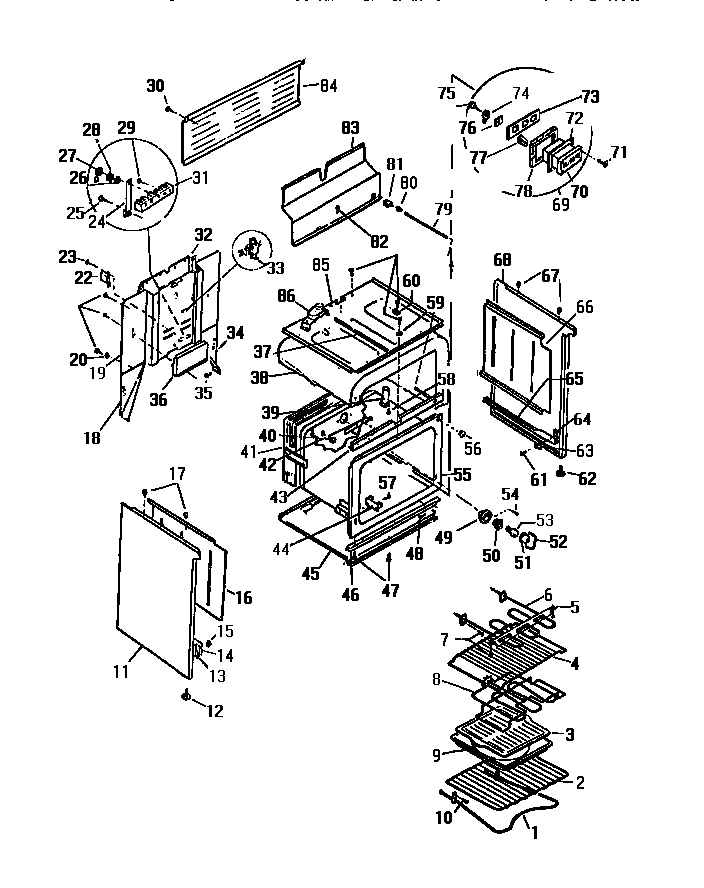

KF560GDH3 06 – BODY, SIDE PANELSadmin2025-04-26T11:46:11+00:00KF560GDH3 06 – BODY, SIDE PANELS
Products
| Position | Product |
|---|
| 1 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 2 | RACK (2) |
| 3 | WCI K1317972 |
| 4 | WCI K5133401 |
| 5 | HANGER |
| 6 | 5303051516 Frigidaire Broil Element |
| 8 | WCI K1313230 |
| 9 | WCI K1317973 |
| 11 | PANEL-END RH-WHEAT |
| 14 | RAIL, DWR, LH |
| 18 | GUSSET REAR, LH |
| 19 | WCI K5275904 |
| 20 | WCI Q410505 |
| 22 | WCI K5290501 |
| 24 | STRAP-GROUND |
| 26 | WASHER (6) |
| 27 | WCI Q401002 |
| 28 | WCI Q500411 |
| 31 | TERMINAL BLOCK |
| 32 | COVER, WIRE |
| 33 | WCI K5328001 |
| 34 | GUSSET, RH |
| 36 | WCI K5134501 |
| 37 | ROD |
| 38 | WCI K1311331 |
| 39 | VENT TUBE |
| 40 | WCI KGM142017 |
| 41 | INSULATION-OVEN BACK |
| 43 | CHANNEL, OVEN SUPPORT |
| 44 | BRACKET THERM. BULB |
| 45 | WCI K5276502 |
| 46 | CHANNEL, OV. SUPT. |
| 49 | CUP, OVEN LT |
| 50 | 316116400 Frigidaire Oven Light Socket |
| 51 | 5304524341 Frigidaire Lens |
| 52 | RETAINING WIRE |
| 53 | WCI Q63749 |
| 55 | WCI K5024701 |
| 56 | PLUG-BUTTON 3/4`` |
| 57 | 08002868 Frigidaire 0 Screw Assembly |
| 58 | SCREW |
| 59 | WASHER, PADDED |
| 60 | RETAINER |
| 61 | SCREW |
| 62 | LEG |
| 63 | GUIDE |
| 64 | SPACER, RAIL |
| 65 | RAIL, DWR., RH |
| 66 | RETAINER-INSUL (2) |
| 67 | BUMPER |
| 68 | WCI K5024609 |
| 69 | WCI Q160978 |
| 70 | BLOCK |
| 71 | SCREW |
| 72 | WCI Q22652 |
| 73 | WCI Q291142 |
| 74 | WCI Q81559 |
| 75 | WCI Q414002 |
| 76 | WCI Q273020 |
| 77 | WCI Q62643 |
| 78 | WCI Q208505 |
| 79 | PUSH ROD |
| 80 | WCI K1322682 |
| 81 | WCI K5328101 |
| 83 | WCI K5029505 |
| 84 | COVER-WIRE |
| 85 | WCI K5025802 |
| 86 | WCI 000000 |
