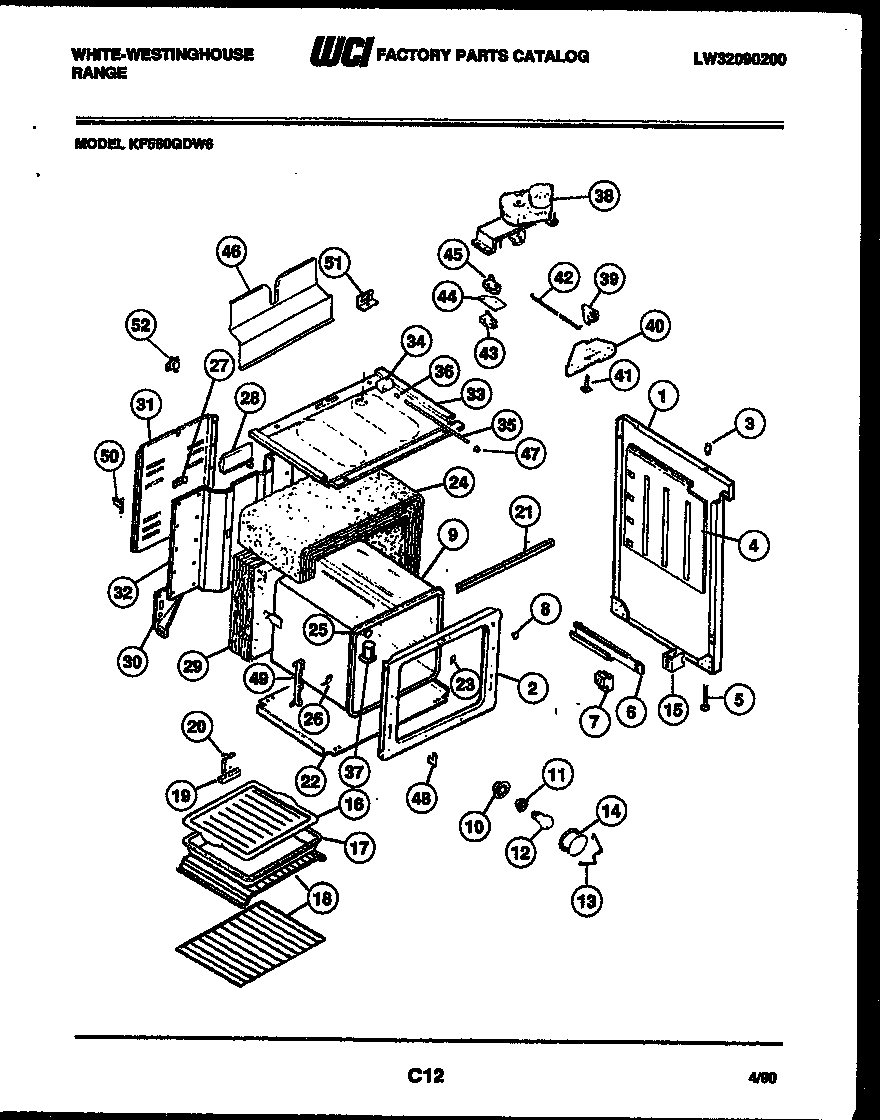

KF560GDH6 07 – BODY PARTS

Products

Position	Product
*29217	WCI Q000160978
1	WCI 08012536
1	SIDE PANEL-RH WHEAT
2	WCI 5303207390
3	BUMPER, COOKTOP (4)
4	RETAINER, INSULATION (2)
5	LEG, LEVELLER (4)
6A	RAIL, DRAWER LH
6	WCI 5308015746
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	WCI 3206386
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER-LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3205234
17	WCI 3205539
18	316067902 Frigidaire Oven Rack
18	RACK-OVEN OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	WCI 5303207391
22	WCI 3206275
23	WCI 3202082
25	PLUG BUTTON (NON-ILLUSTRATED)
26	WCI 3201632
27	WCI 3016281
28	WCI 3051634
29	INSULATION
30	WCI 3017481
30	WCI 3017482
31	WIRE, COVER
32	WCI 3017480
33	WCI 08012542
34	WCI 3017799
35	WCI 08007445
36	WCI 08007444
37	TUBE-OVEN VENT
38	LATCH, MOTOR
39	WCI 3202387
40	HOUSING-DOOR LATCH
41	AXLE - HINGE (2)
42	WCI 3051649
43	SWITCH, LOWER
44	WCI 08003090
45	SWITCH-LOWER
46	WCI 5303209282
47	WCI 08067758
48	WCI 3019063
48A	ANTI-TIP KIT, (NON-ILLUSTRATED)
48B	WCI 5300009126
49	WCI 3201631
50	BALLAST-LAMP (NON-ILLUSTRATED)
51	BRACKET-LIGHT SWITCH
52	WCI K005328001
