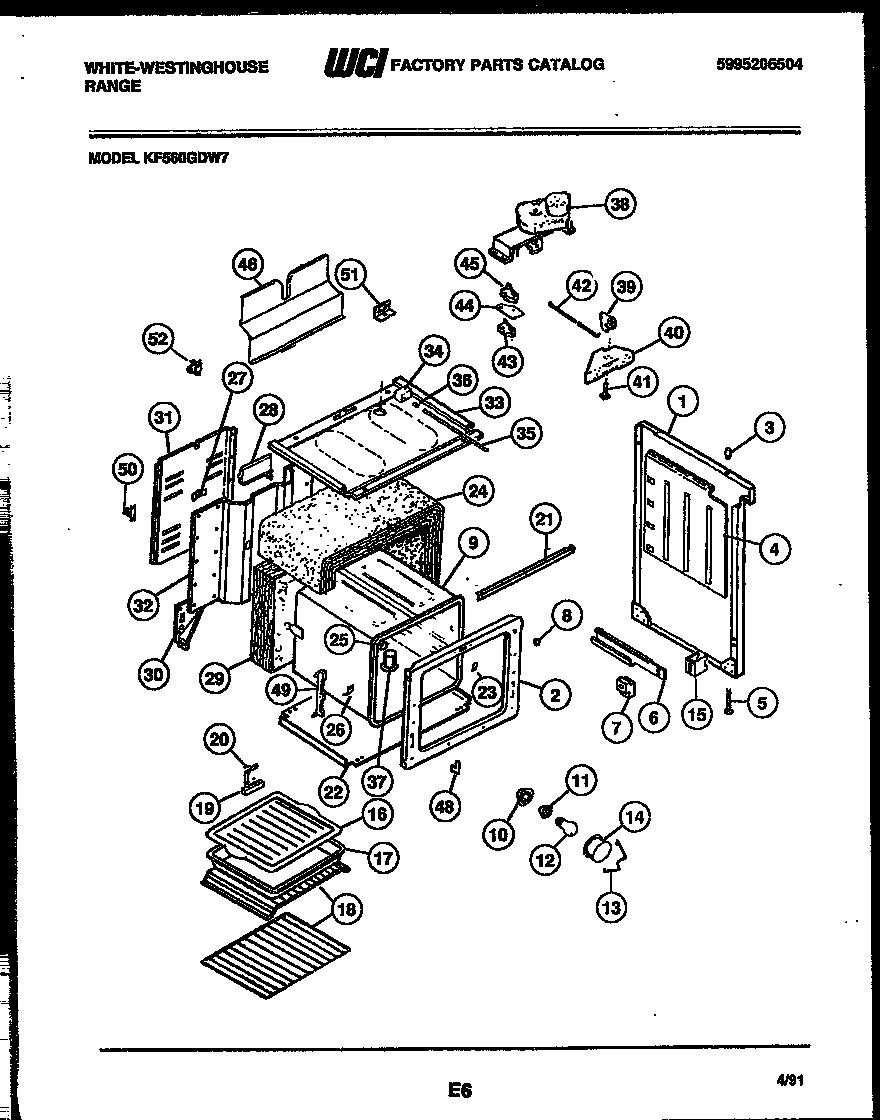

KF560GDH7 07 – BODY PARTS

Products

Position	Product
*47188	WCI 191S021P48
*47188	WCI Q000160978
1	WCI 08012536
1	SIDE PANEL-RH WHEAT
2	WCI 5303207390
3	BUMPER, COOKTOP (4)
4	RETAINER, INSULATION (2)
5	SCREW-LEVELING (4)
6A	RAIL, DRAWER LH
6	WCI 5308015746
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	WCI 3206386
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER-LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3205234
17	WCI 3205539
18	RACK-OVEN OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE=GROUND STRAP
21	WCI 5303207391
22	WCI 3206275
23	WCI 3202082
25	PLUG BUTTON (NON-ILLUSTRATED)
26	WCI 3201632
27	WCI 3016281
28	WCI 3051634
29	INSULATION
30	WCI 3017481
30	WCI 3017482
31	WIRE, COVER
32	PANEL-BACK
33	WCI 08012542
34	WCI 3017799
35	WCI 08007445
36	WCI 08007444
37	TUBE-OVEN VENT
38	LATCH, MOTOR
39	LATCH-DOOR
40	HOUSING-DOOR LATCH
41	AXLE - HINGE (2)
42	WCI 3051649
43	SWITCH, LOWER
44	WCI 08003090
45	SWITCH-LOWER
46	WCI 5303209282
48B	WCI 5300009126
48A	ANTI-TIP KIT, (NON-ILLUSTRATED)
48	WCI 3019063
49	WCI 3201631
50	BALLAST-LAMP (NON-ILLUSTRATED)
51	BRACKET-LIGHT SWITCH
52	WCI K005328001
